Coating Excellence Guide

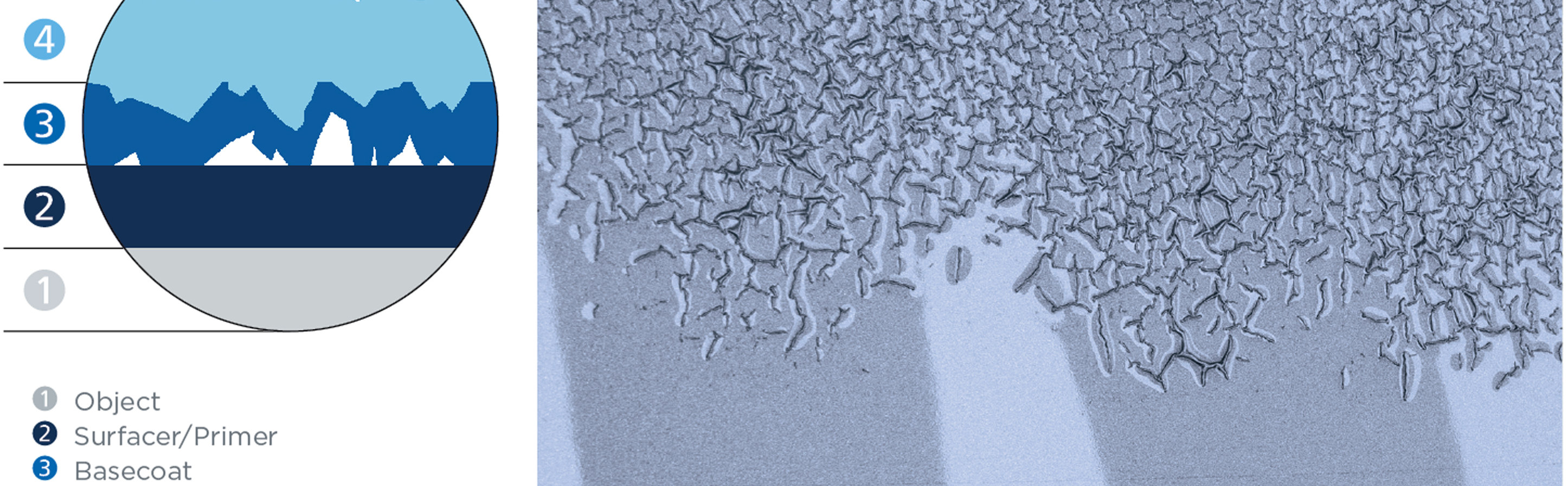

Lifting/Frying/Pickling

Swelling or lifting of previous layer(s) can occur during spraying, caused by partly dissolving previous layers.

Cause

• Incompatibility: the paint applied is unsuitable for the substrate.
• Degreaser too aggressive for substrate (primer, filler and/or topcoat).
• Possibly poor adhesion of the previous painted layer.
• Substrate not hardened thoroughly/not completely dry.
• Application of the paint system too heavy.
• Extraordinarily long flash-off time between coats. First coat with extra-long flash-off time is dissolved by next coat.

Prevention

• Always do a solvent test on/around the area to be repaired.
• Select suitable products for each substrate.
• Mix the products according to Technical Data Sheets and use correct spraying technique; do not overload.
• Use the correct drying times/temperatures.
• Apply the next coats directly after recommended flash-off time.

Remedy

• In case of minor lifting, sand down to a sound layer after drying. After sanding, apply the refinish system carefully again.
• Always spray sensitive substrates carefully:
− In thin coats and with sufficient flash-off time between each coat.
• In event of severe lifting, remove the layers completely before applying the new paint system.

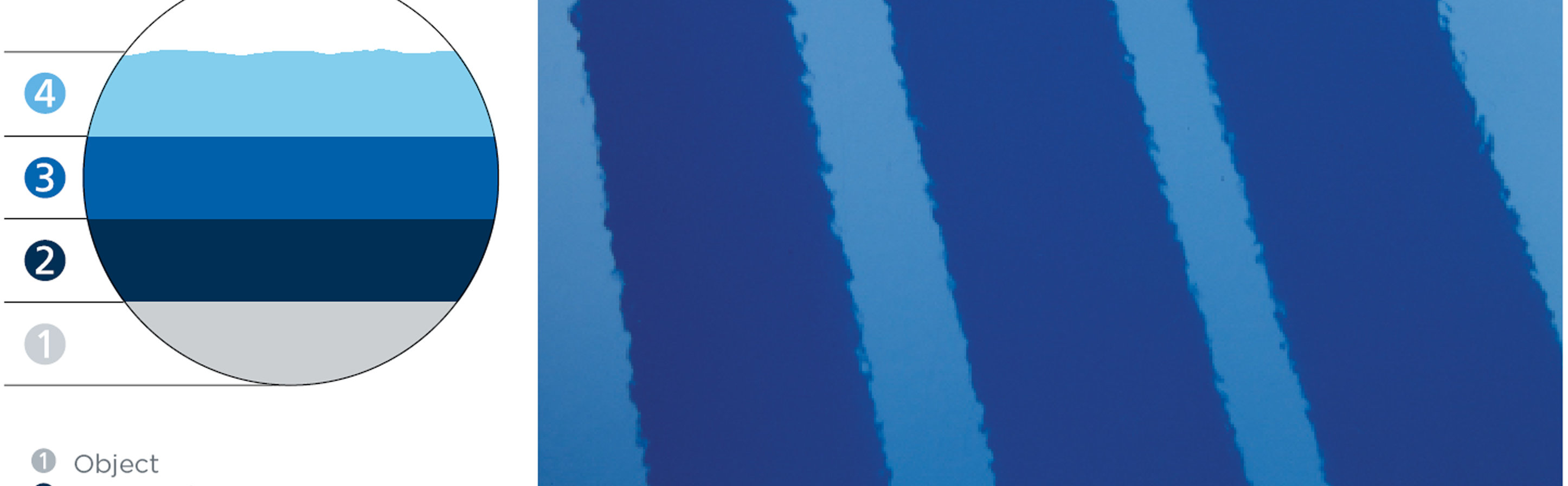

Orange peel

Freshly applied paint shows poor flow and looks like a skin of an orange (peel).

Cause

• Paint is too thick, spraying viscosity too high.
• Incorrect hardener, too fast.
• Incorrect thinner, too fast.
• Spraying pressure too high/too low.
• Spray gun set-up: nozzle size too big.
• Extremely high temperatures.
• Paint materials too cold.

Prevention

• Use the correct mixing ratio (use measuring stick or mix over scale).
• Check viscosity.
• Use recommended hardener and thinner for job size, temperature, and air flow.
• Apply products according to the TDS.
• Use correct spray gun set-up for products.
• Ideal spraying temperature is approximately 20°C/68°F.
• Avoid spraying at extremely high temperatures.
• Ideal storage temperature is approximately 20°C/68°F.

Remedy

• Polishing will rectify minor orange peel effect.
• In case of severe orange peel effect, sand and re-spray the object.

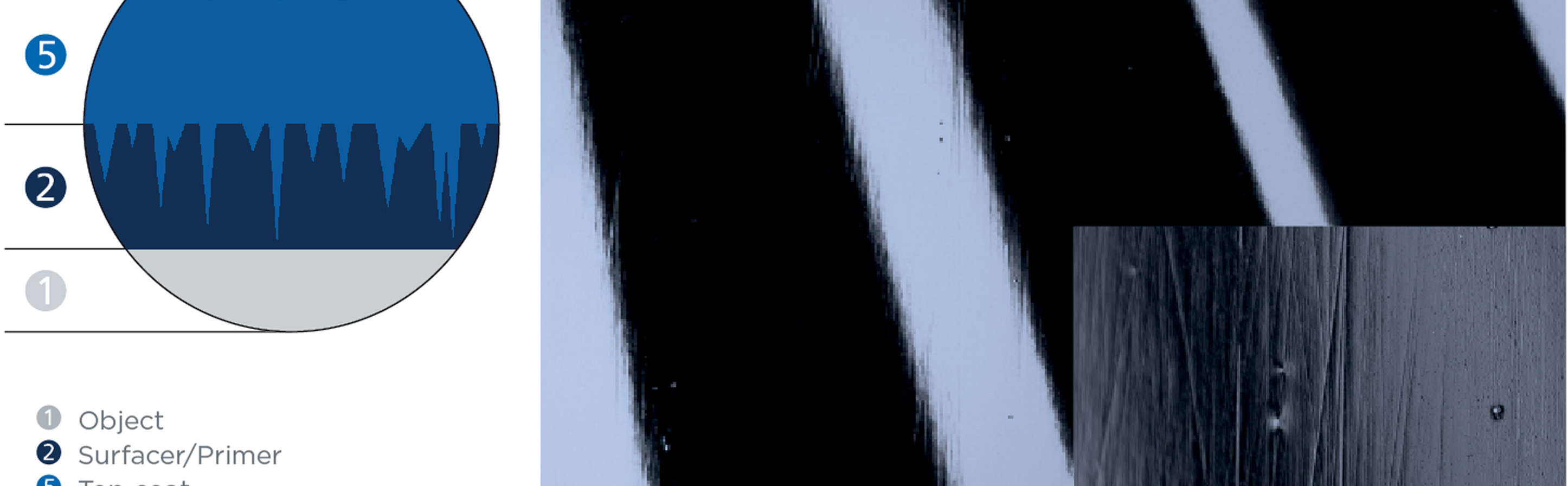

Sanding marks

Fine/coarse scratches in different patterns, circular or random, can appear in the topcoat system, either immediately or after a while.

Cause

• Wrong sanding grade used, too coarse for the products applied subsequently.
• Insufficient drying/curing of the primer/surface/fillers.
• Contamination on the object causing scratches: coarse dirt particles, etc..
• Wrong sandpaper/sandpaper grit used for manual sanding.

Prevention

• Check TDS for correct sandpaper.
• Make sure primer/surfacer or filler is thoroughly cured/hardened through before sanding.
• Keep object to be painted clean, also during sanding.
• Use appropriate hand-sanding paper for manual sanding.

Remedy

• Thoroughly dry the paint system first.
• Sand substrate with correct sandpaper and sandpaper grit.
• If necessary, completely remove scratches from previous layer by sanding with the appropriate sanding grit and steps.
• If necessary, apply primer/surfacer/filler.
• Apply the top coat system .
