FIRETEX® FX7002
Solvent-Based Cellulosic Intumescent Passive Fire Protection Coating
Providing the Broadest Approved Beam Listings and Competitive Coating Thickness Required with FIRETEX® FX7002
FIRETEX FX7002 is a solvent-based, thin-film intumescent fire protection coating designed to meet the highest performance and aesthetic demands of today’s commercial construction industry. This coating provides up to two hours of fire protection with competitive coating thickness required for interior concealed and exposed structural steel substrates. It has among the industry’s broadest range of approved beam listings for a solvent based acrylic fire protection coating. Combined with the lightly textured, flat white finish, this coating delivers more freedom to building owners and designers to construct unique structures featuring architecturally exposed structural steel (AESS).
FIRETEX FX7002 Fire Protection Coating Offers:
- Easy onsite application with broader application window

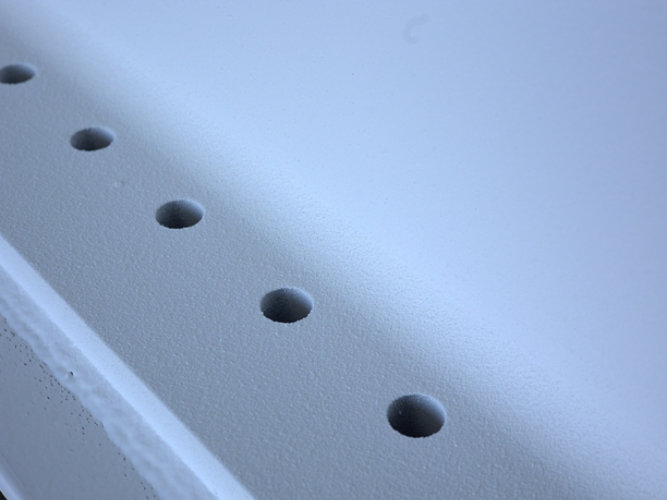

- Aesthetically pleasing finish
- ANSI/UL 263 listed
- CAN/ULC-S101
- Single-component intumescent
- Suitable for shop or on-site application
- Impact resistant
- Low VOC
- Industry leading technical and engineering support
- Local distribution in North America
Meet FIRETEX® FX7002 Fire Protection Coating!
Why FIRETEX FX7002?
Solvent-based, thin-film intumescent fire protection coating designed to meet the highest performance and aesthetic demands
- Easy onsite application with broader application window
- Aesthetically pleasing finish
- ANSI/UL 263 listed
- CAN/ULC-S101
- Single-component intumescent
- Suitable for shop or on-site application
- Impact resistant
Want to know if the FIRETEX® FX7002 fire protection coating is right for your project?
Get in touch with our industry leading sales and tech teams. They can help determine the right advanced fireproofing coatings and offer comprehensive specification support for your project. Or scroll down to learn more.
Features & Benefits
FIRETEX® FX7002 intumescent coating is used to enhance the fire resistance of structural steel members by providing a layer of insulation, which is formed as a result of a chemical reaction initiated by fire. This insulation reduces the rate of heat transfer and extends the time period for which the structural member can resist the weakening effects of the heat.
Application Time Savings

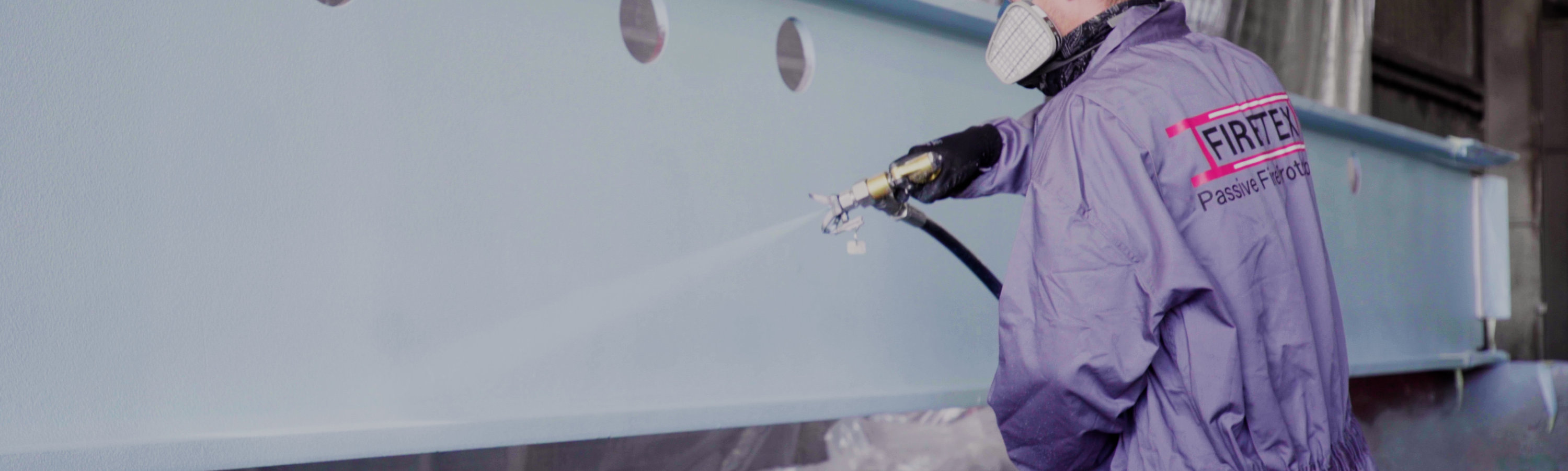

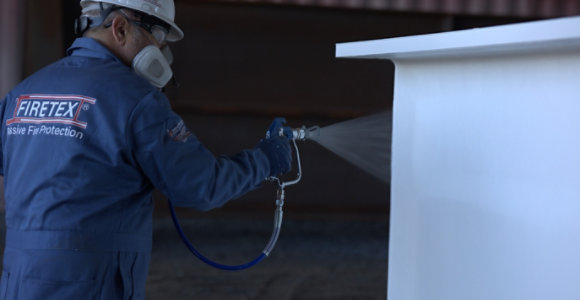

- Single-component application – only standard suction feed airless spray equipment required
- Broader on-site application window with ability to spray in cooler and more humid conditions
- Suitable for shop or on-site application
Cost Effectiveness
- High wet film build properties that can reduce the number of coats required and overall project costs
- Provides up to two hours of fire protection on interior and exposed structural steel substrates with competitive dry film thickness (DFT) required
Tested and Certified Protection
- ANSI/UL 263 and CAN/ULC-S101-certified for up to two hours of protection
- Among the industry’s broadest range of approved beam listings for a solvent-based fire protection coating – delivering more freedom to building owners and designers
- Passed a wide variety of tests on restrained and unrestrained beams
Extended Life of Assets
- Superior protection from both fire and corrosion compared to cementitious and single-component acrylics
- Lowest lifecycle cost option
- High-performance corrosion and fire protection in a wide range of environments
Recommended Uses
FIRETEX FX7002 has among the industry’s broadest range of approved beam listings for a solvent based acrylic fire protection coating. Combined with the lightly textured, flat white finish, this coating delivers more freedom to building owners and designers to construct unique structures featuring architecturally exposed structural steel. Typical facilities where FIRETEX® FX7002 can be used include:
- Airports
- Convention centers
- Stadiums and arenas
- Healthcare/hospitals
- Warehouses
- Hotels
- Lobbies and atriums
- Industrial buildings
- EV battery/automotive facilities
- Semiconductor manufacturing facilities
- Pharmaceutical facilities
- Food and beverage facilities
