High Performance FIRETEX® System Protecting the Iconic Cheesegrater

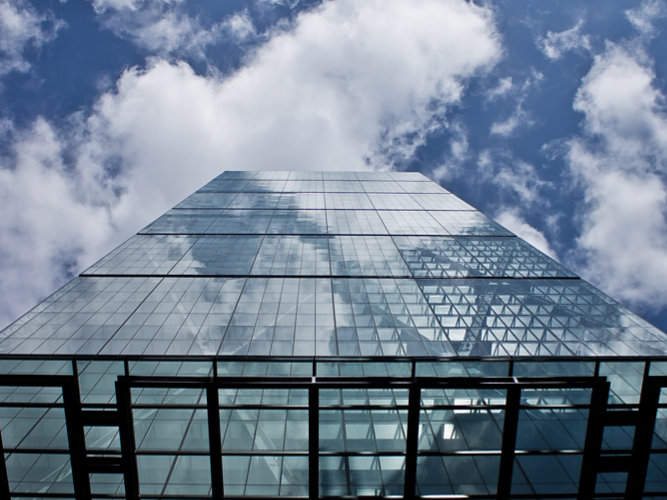

The leaning modern glass and steel structure known as the ‘Cheesegrater’ for its distinctive shape has made the Leadenhall Building a new, iconic London landmark. The building, opposite Lloyd’s of London, contains 56,670 m² of office space, incorporates 18,000 tonnes of steel, with components made and assembled far and wide developed by British Land and Oxford Properties.

In its concept, the structure was to have no central concrete core, with an external steel frame as well as a central steel core providing lateral stability and featuring 26 passenger lifts at its northern core.

Solution

Because of the nature of the development as a major London landmark, the Sherwin-Williams Protective & Marine Coatings division’s Fire Engineering & Technical Services Teams, working with structural steel specialist Severfield, had to ensure the highest standard of design and application from both a finish and aesthetic perspective as well as a protection point of view.

Many of the elements - including beams, columns and large transitional nodes within the mega-frame - were a complex bespoke design and required specific and complex fire protection analysis by the fire engineering team at Sherwin-Williams as well as coating application methodology in Severfield’s own shop facilities.

Further challenges were presented by the floor plate construction methods from ‘slim floor’ construction in the basements to conventional down-stand beams in the upper floors. Sherwin-Williams used Building Information Modeling (BIM) on the floor plate fire design to seamlessly integrate the coatings into the Severfield 3D model.

There was a need for different intumescent technologies due to the large variance in the building’s environmental conditions. The mega- frame exoskeleton has large temperature and humidity fluctuations and this led to the need for thick film epoxy fire proofingan ultra-durable epoxy intumescent coating. The steel remains wholly to viewfully on show due to the glazed exterior and so the finish was architecturally high, another difficult achievement using a high thickness epoxy intumescent.

For fire protection, the whole structure was sprayed prior to site assembly using FIRETEX^® C69 blast primer, intumescent build coats of from the FIRETEX FX2002 series of fast drying solvent based products and FIRETEX M95 FX9500 series of epoxy intumescent coatings with a top coat of Acrolon™ C237 with a dry film thickness (DFT) of between 1-13 mm, depending on the thickness of the steel, giving 90 minutes of fire protection. These coatings ensured that the unusual design elements had the optimum protection but would also fit with the overall vision as an important visual landmark in the City of London.
