Vida

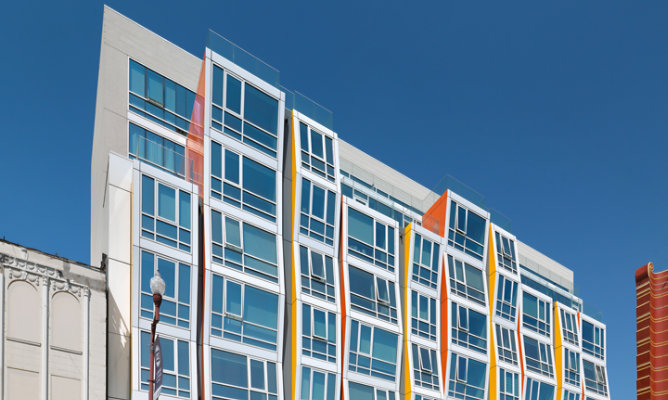

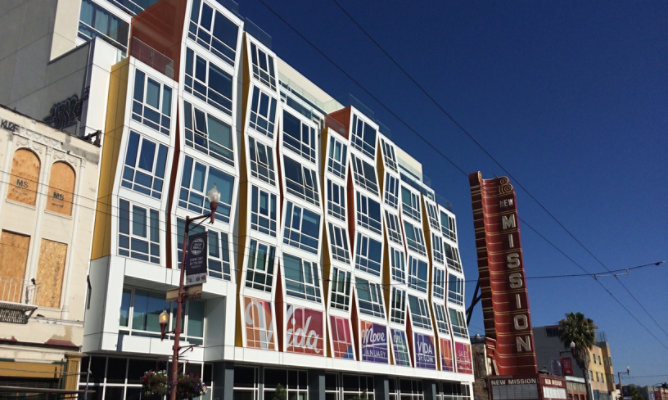

Kwan Henmi continues the description, adding, “The project showcases quality and urban living. Meticulous details weave the project tightly into the existing vibrant urban fabric. The design utilizes contemporary schemes and materials to bring individuality to the building and dwelling units. The vivacious façade reflects the dynamic culture of the Mission and of the young residents that will live in this new community.”

Achieving the modern look and performance, Vida’s multifamily project goes beyond CALGreen’s mandatory measures to become GreenPoint Rated. This rating certification is earned through Build It Green, a professional nonprofit organization that promotes healthy, energy- and resource-efficient buildings in California.

The minimum requirements for a GreenPoint Rated home are to meet the prerequisites, obtain at least the minimal points per category for Community, Energy, Indoor Air Quality/Health, Resources and Water, and to earn a total of 50 points or more. Vida targeted more than 100 points, including exceeding CALGreen Title 24 by 15 percent to earn 30+ points for building performance and low/no-VOC paints and coatings to earn 3 points for finishes.

Linetec supports Winco’s products and their contribution to the project’s green building attributes by applying both the durable Fluropon^® 70 percent PVDF resin-based architectural coatings and the thermal strut for improved energy performance.

Winco Windows’ 1450 Series 4-inch unitized window wall accommodate Vida’s large window openings with deep wall cavities. In addition, its 3325 Series 3.25-inch zero sightline vents provide natural ventilation and clean sightlines. Because these systems are manufactured with aluminum, Linetec prepares the extrusions and inserts a polyamide insulating strip. This thermal barrier system improves thermal performance, while maintaining the structural and long-term durability of the fenestration unit.

As an environmentally responsible finisher, Linetec applies these high-performance painted coatings, and safely captures and destroys the VOCs present in liquid solvent-based paints before the finished products’ arrival on the building site. Under Linetec’s stringent factory-controlled processes, the finish meets the American Architectural Manufacturers Association’s (AAMA) 2605 specification. The resulting long-lasting finish also helps reduce the building owner and residents’ maintenance costs.

Anticipating the residents’ daily use, Winco’s in-house team engineered the fully operable window vent system to minimize incoming rainwater if a window accidentally was left open. To successfully weep the vent cavity, Winco created a sloped, operable unit capable of draining water away from the building.

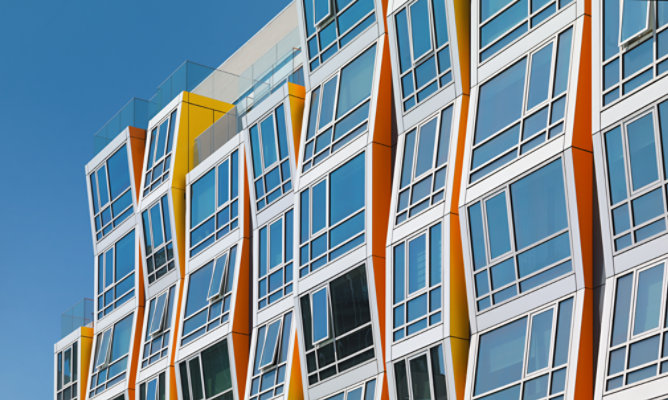

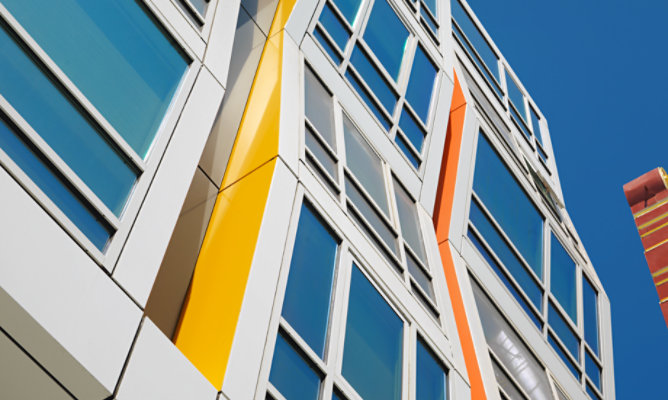

“This project has a challenging design where the windows are sloped 7 degrees inwards and 7 degrees outwards in alternating columns,” noted Bagatelos Architectural Glass Systems.

Winco worked with Bagatelos to design a receptor system around the windows that helps withstand water infiltration and meets California’s stringent seismic standards. Every single vent system was rigorously tested for infiltration before it left Winco’s plant in St. Louis.

In the nearly three years since Vida opened in December 2015, the window system has proven its performance and upheld its appearance. Named “San Francisco Market-Rate Residential Deal of the Year for 2014” by the San Francisco Business Times, Vida was sold-out by August 2015, four months prior to its completion.

Project Credits:

• Owner: Oyster Development; San Francisco, CA
• Coatings provider: Sherwin-Williams Coil Coatings, extrusion coatings

• Architect: DLR Group|Kwan Henmi; San Francisco, CA
• General contractor: Build Group, Inc.; San Francisco, CA
• Glazing contractor: Bagatelos Architectural Glass Systems
• Glazing systems – glass supplier: Oldcastle Building Envelope
• Glazing systems –manufacturer: Winco Windows; St. Louis, MI
• Applicator – finishing provider: Linetec; Wausau, WI

• Photography credits: Rien van Rijthoven, courtesy of Winco Windows
