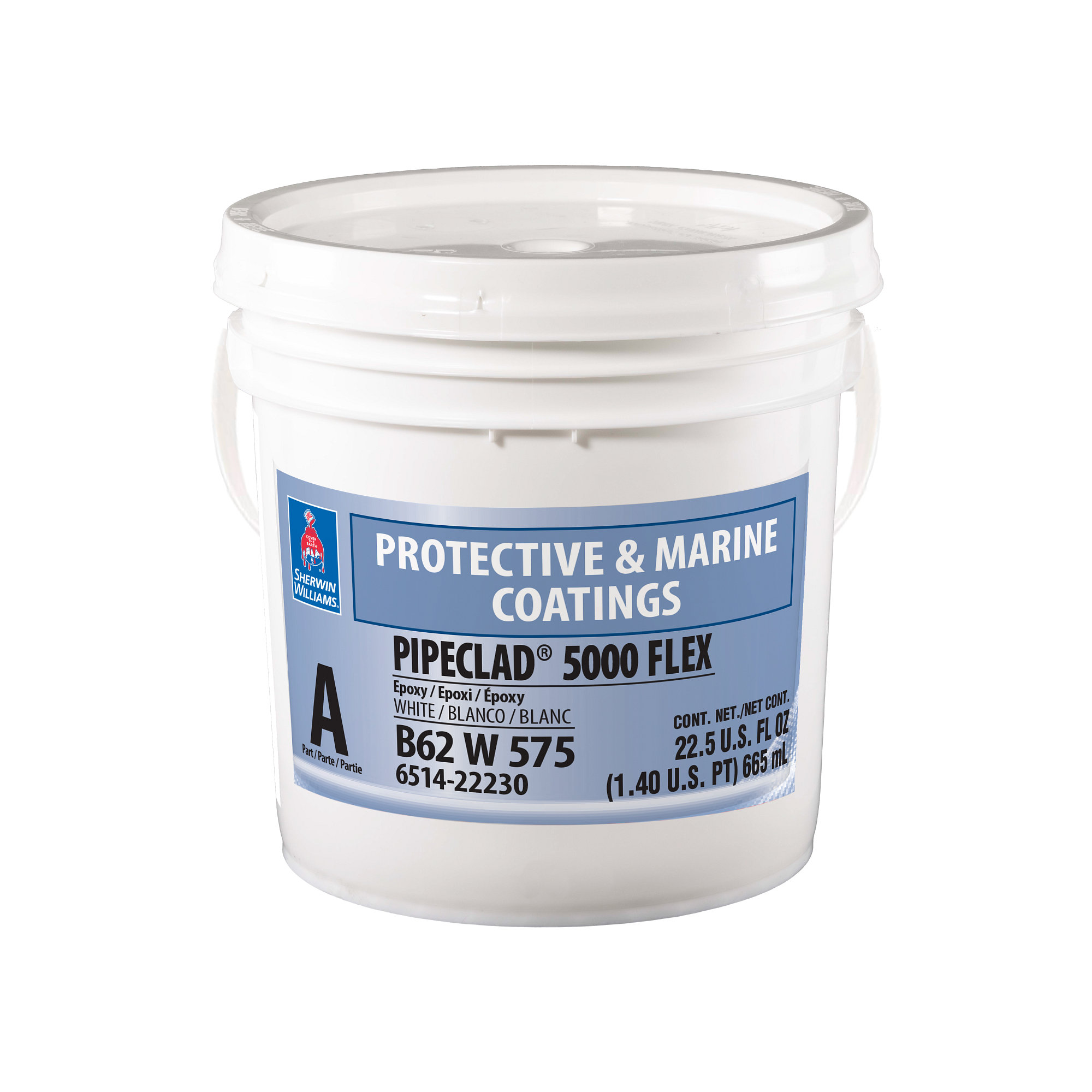

Pipeclad® 5000 Flex
A two-component, epoxy phenolic novolac.
Pipeclad® 5000 Flex is an ultra high solids amine cured epoxy phenolic novolac engineered specifically to deliver long term corrosion resistance and temperature resistance up to 203°F (95°C) to below grade oil, LNG, and NGL pipelines, underground utilities, valves, and other equipment. It is formulated to provide outstanding resistance to impact, abrasion, chemical immersion, and from cathodic disbondment when used in combination with cathodic protection systems. Passes CAN/CSAZ245.30 field-applied external coatings for steel pipeline systems.
Interested in learning more or purchasing this product?
Contact usMore Details
Benefits
- Excellent cathodic disbondment resistance in ambient and elevated temperature service
- High impact and abrasion resistance
- Fast dry to backfill / return to service
- Excellent adhesion over prepared steel and FBE (fusion bonded epoxy) coated pipe
- Excellent application properties by brush, roller, broad knife, or plural component spray
- High build application: up to 45 mils (1,125 microns) WFT in one coat
Brand
Technology
Technical Data Table
| Chemistry | Epoxy |
|---|---|
| VOC | <100 g/L (0,83 Lb/Gal) |
Product data is a representative set of attributes and characteristics for this system or product line. Data for individual products may vary and is subject to change. Please reference the individual product datasheet for exact specifications on the Datasheets tab above or through Search.
Still can't find a datasheet you are searching for? Try our full datasheet search or check out our paintdocs service.
