Key Water & Wastewater Protection Products
Long-Lasting Linings and Coatings
Durable Coating & Lining Systems for Water & Wastewater
Through advanced chemical formulations, Sherwin-Williams coatings and linings offer high resistance to the corrosive effects of chemicals commonly found in water treatment facilities, safeguarding infrastructure and promoting a safer operating environment. With easy application and high adhesion properties, our systems ensure a seamless, efficient application process, enabling enhanced operational efficiency and minimized downtime.
-
Dura-Plate® 6000
Dura-Plate® 6000 is a 100% solids, high build, high strength, reinforced epoxy lining for concrete and steel in potable water and severe service environments with 10 hour return-to-service times applied via single leg application and the option for plural component application. It eliminates the application challenges associated with fiber/microfiber filled products while providing long-term life expectancy with extremely low permeability and excellent chemical resistance.
For use over properly prepared steel and concrete surfaces in industrial environments and water & wastewater exposures, such as but not limited to:
- Severe wastewater immersion and headspace environments
- Sewer collection systems
- Wastewater treatment plants
- Industrial and wastewater tankage
-
Dura-Plate® 6100
Dura-Plate 6100 Epoxy is a high-build, high-performance, 100%-solids epoxy designed for corrosion protection of concrete and steel in municipal and industrial wastewater environments. Dura-Plate 6100 delivers overall cost savings with improved lifecycles, fast project completion and enhancements to structural properties of the existing asset.
For use over properly prepared steel and concrete surfaces in industrial environments and water & wastewater exposures, such as but not limited to:
- Manholes
- Wet wells
- Lift stations
- Influent channels
- Digesters
- Steel pipe
- Concrete pipe
- Wastewater structures
Sewer and Wastewater Collection Coatings
-
Dura-Plate® 6000
Dura-Plate 6000 is a 100% solids, high build, high strength, reinforced epoxy lining for concrete and steel in potable water and severe service environments with 10 hour return-to-service times applied via single leg application and the option for plural component application. It eliminates the application challenges associated with fiber/microfiber filled products while providing long-term life expectancy with extremely low permeability and excellent chemical resistance.
For use over properly prepared steel and concrete surfaces in industrial environments and water & wastewater exposures, such as but not limited to:
- Severe wastewater immersion and headspace environments
- Sewer collection systems
- Wastewater treatment plants
- Industrial and wastewater tankage
- Industrial pretreatment/wastewater treatment
-
Dura-Plate® 6100
Dura-Plate® 6100 EPOXY is a high-build, high-performance, 100%-solids epoxy designed for corrosion protection of concrete and steel in municipal and industrial wastewater environments. Dura-Plate 6100 delivers best performing chemical resistance and physical characteristics, as well as overall cost savings with improved lifecycles, fast project completion and enhancements to structural properties of the existing asset.
For use over properly prepared steel and concrete surfaces in industrial environments and water & wastewater exposures, such as but not limited to:
- Manholes
- Wet wells
- Lift stations
- Influent channels
- Digesters
- Steel pipe
- Concrete pipe
- Wastewater structures
-
Tank Clad™ HS
Tank Clad HS is an 80% volume solids, amine cure epoxy designed for corrosion protection of equipment, piping, tanks, and vessels exposed to corrosive immersion condition including wastewater, salt water, and petrochemical commodities.
Tank Clad HS is the primary choice for metal structures associated with wastewater processing equipment and structural supports for new construction or rehabilitation applications.
For use over properly prepared steel and concrete surfaces in industrial environments and water & wastewater exposures, such as but not limited to:
- Exterior buried piping
- Interior wastewater piping
- Interior process vessels

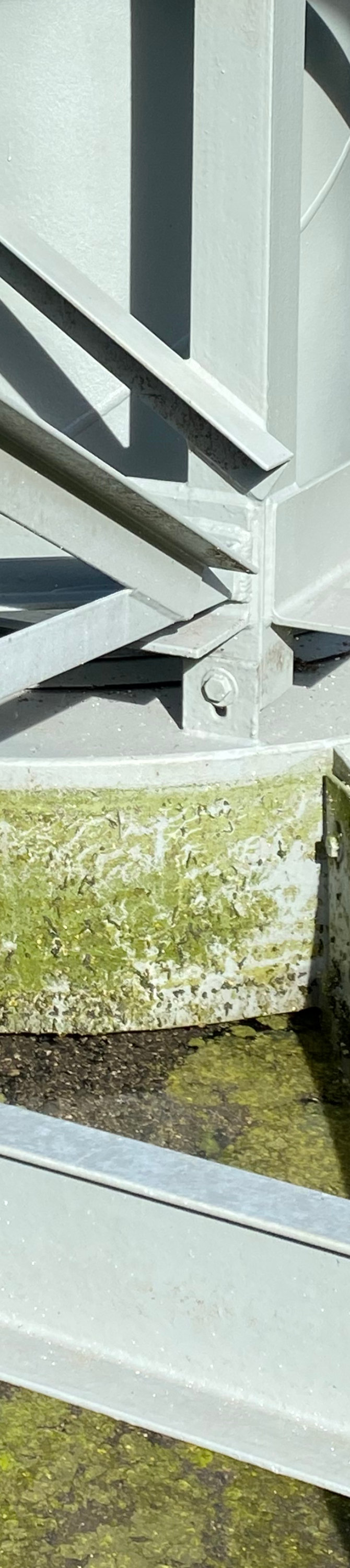

- Clarifier assemblies, rake arms, weirs,
- Structural steel in chemical environments
-

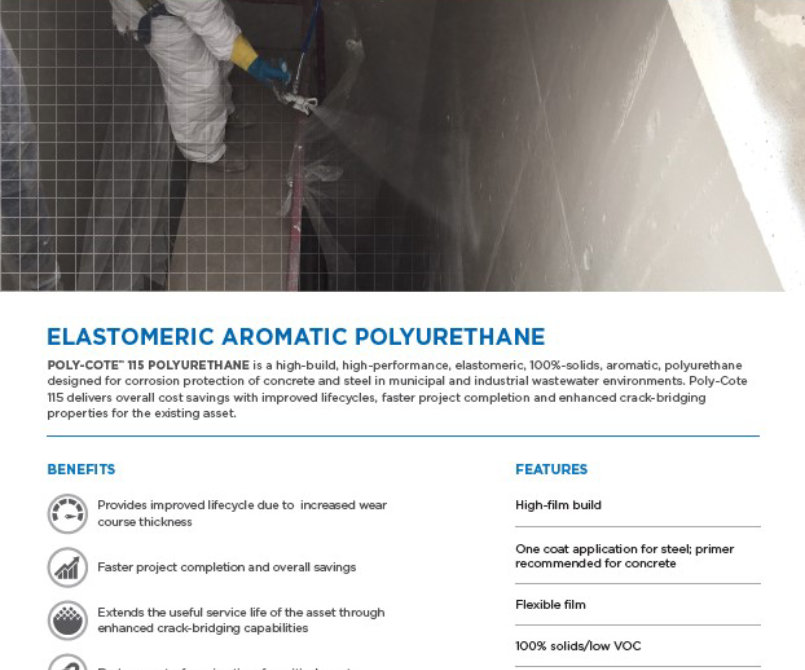

Poly-Cote™ 115
Poly-Cote 115 Polyurethane is a high-build, high-performance, elastomeric, 100%-solids, aromatic, polyurethane designed for corrosion protection of concrete and steel in municipal and industrial wastewater environments. Poly-Cote 115 delivers overall cost savings with improved lifecycles, faster project completion and enhanced crack-bridging properties for the existing asset.
For use over properly prepared steel and concrete surfaces in industrial environments and water & wastewater exposures, such as but not limited to:
- Manholes
- Wet wells
- Lift stations
- Influent channels
- Digesters
- Steel pipe
- Concrete pipe
- Wastewater structures

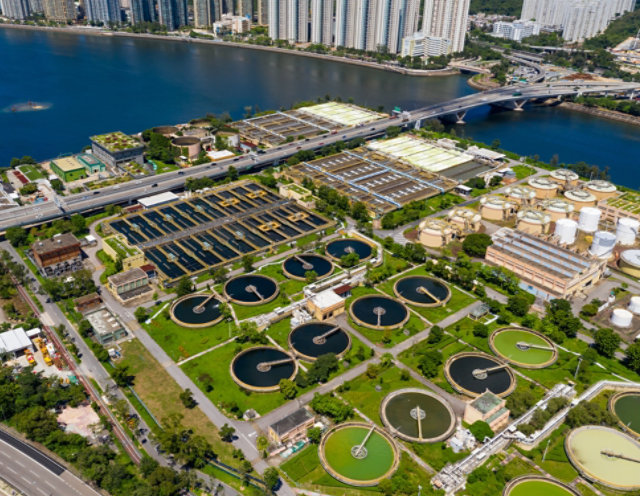

Wastewater Treatment
-
Sherplate™ 600
Regardless of your industry, when your assets require potable water certified corrosion protective systems, you need performance-oriented, efficient and sustainable coating solutions. Sherwin-Williams Sherplate 600 is a revolutionary phenalkamide epoxy lining that delivers the longest expected service life for comparable epoxy linings and full compliance with NSF/ANSI/CAN 61 regulations.
For use over properly prepared steel and concrete surfaces in industrial environments and water & wastewater exposures, such as but not limited to:
- Tanks AWWA D102
- Piping AWWA C210
- Immersion grade lining
- Potable water clarifiers and assemblies
- Vessels and misc. metals
-
Sherplate™ PW
Sherplate™ PW is a two-component, edge-retentive, ultra-high solids epoxy amine coating. Engineered for immersion service in potable water pipes and storage tanks, Sherplate™ PW epoxy provides superior protection thanks to its rapid-return-to-service and high-build and edge-retentive properties.
Sherplate PW provides industry-leading expected service life and is the longest-lasting product for water tank linings.
For use over properly prepared steel and metal surfaces in industrial environments and potable water exposures, such as but not limited to:
- Tanks AWWA D102
- Vessels AWWA D102
- Piping AWWA C210
- Gates, valves, or misc. metals in potable water immersion
-
Dura-Plate® UHS
Dura-Plate® UHS is a two-component, ultra-high solids epoxy amine. Engineered for immersion service in potable water applications. Dura-Plate® UHS Epoxy provides superior protection through its high-build, edge-retentive properties as compared to conventional epoxies.
For use over properly prepared steel and concrete surfaces in industrial environments and potable water exposures, such as but not limited to:
- Tanks AWWA D102
- Vessels AWWA D102
- Piping AWWA C210
- Gates, valves, or misc. metals in potable water immersion
-
Macropoxy® 5500LT
Macropoxy 5500LT is a two-component, high-solids polyamidoamine epoxy lining. Developed for potable water storage tanks, the Macropoxy 5500LT tank lining displays superior spray and performance properties that make it ideal for field or shop applications.
For use over properly prepared steel and concrete surfaces in industrial environments and potable water exposures, such as but not limited to:
- Tanks AWWA D102
- Piping AWWA C210
Water Storage
-
Sherplate™ 600
Sherwin-Williams Sherplate 600 is a revolutionary phenalkamide epoxy lining that delivers the longest expected service life for comparable epoxy linings and full compliance with NSF/ANSI/CAN 61 regulations. It is suitable for the inside and the outside surfaces of below grade steel pipes carrying potable or raw water.
For use over properly prepared steel and ductile iron surfaces in industrial environments and water & wastewater exposures, such as but not limited to:
- Designed for pipes with a 12 inch minimum diameter
- Suitable for steel or ductile iron construction materials
-
Sherplate™ PW
Sherplate™ PW is a two-component, edge-retentive, ultra high-solids epoxy amine coating that offers industry-leading performance in transmission applications. The one-to-one mix ratio and viscosity make Sherplate PW the preferred choice for automated interior pipe lining applications.
Whether you are lining the inside of a penstock or a 4 inch diameter transmission pipe, Sherplate PW provides superior protection thanks to its rapid-return-to-service and high-build and superior wear resistance properties.
For use over properly prepared steel and metal surfaces in industrial environments and potable water exposures, such as but not limited to:
- Piping AWWA C210 - 4 inch diameters or greater
- Gates, valves, or misc. metals associated with water transmission
- Piping AWWA C210 - 4 inch diameters or greater
-
Dura-Plate® UHS
Dura-Plate® UHS is a two-component, ultra high-solids epoxy amine. Engineered for immersion service in potable water applications. Dura-Plate® UHS Epoxy provides superior protection through its high-build, edge-retentive properties as compared to conventional epoxies. It is applied by standard single-leg airless spray application for simplified equipment use allowing for greater mobility and versatility for varying project sizes.
For use over properly prepared steel and metal surfaces in industrial environments and potable water exposures, such as but not limited to:
- Piping AWWA C210 - 4 inch diameters or greater
- Gates, valves, or misc. metals associated with water transmission
- Piping AWWA C210 - 4 inch diameters or greater
-

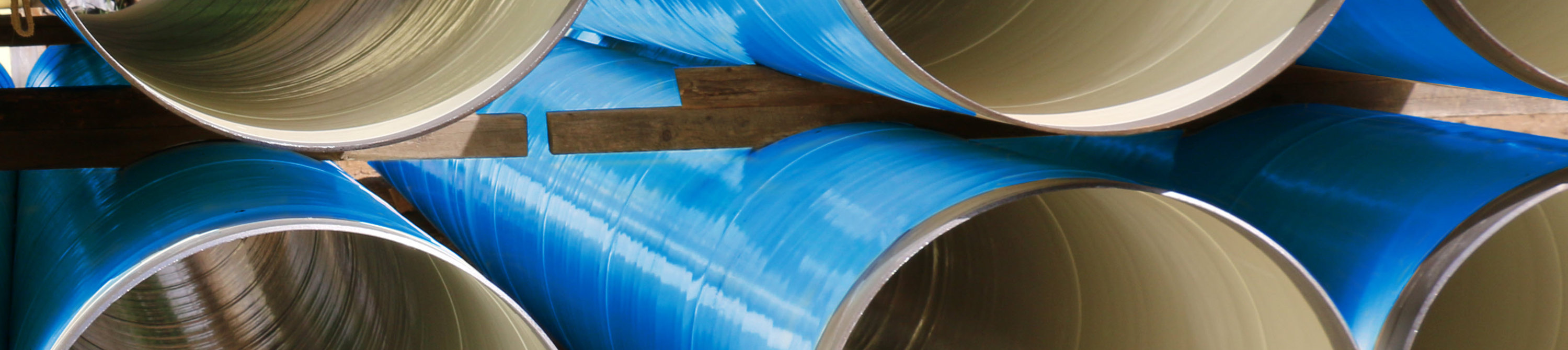

PipeClad® 8000
PipeClad® 8000 is a two component, quick setting, 100% solids
aromatic polyurethane designed to protect transmission pipelines from corrosion, abrasion and impact as both an exterior coating and interior lining. It can be sprayed in a single coat application at varying temperatures and film thicknesses. PipeClad 8000 is also suitable for more demanding pipeline applications, such as slip bore, jack and post and horizontal directional drill projects. It is available in several set speeds to accommodate a range of both automated and manual application requirements.For use over properly prepared steel surfaces in transmission environments and water & raw water exposures. PipeClad 8000 is approved for use in transmission pipelines according to the following approvals and listings:
- AWWA C222-18 compliant
- British Standard EN 10290 compliant
- NSF 61/600 compliant for Potable Water Pipe (Diameters =>4" COLD 23, max DFT 120 mils/3000 microns, Immediate Return-
to-Service) - NSF 61/600 compliant for Potable Water Pipe (Diameters =>16"
D.HOT, max DFT 120 mils/3000 microns, Immediate Return-to-Service)
Water Transmission
-
Sherplate™ 600
Sherplate 600 is a revolutionary phenalkamide epoxy lining that offers the longest expected service life for comparable epoxy linings and delivers full compliance with NSF/ANSI/CAN 61 regulations. Sherplate 600 provides optimal protection of hard edges and irregular surfaces, even on intricate equipment such as clarifier rake arms. Its durable edge retention characteristics achieve a longer service life for the installed asset, ultimately reducing maintenance cycles.
For use over properly prepared steel and concrete surfaces in industrial environments and water and raw water exposures, such as but not limited to:
- Tanks AWWA D102
- Piping AWWA C210
- Immersion grade lining
- Potable water clarifiers and assemblies
- Vessels and misc. metals
-
Dura-Plate® 6000
Dura-Plate® 6000 is formulated to provide maximum protection on concrete surfaces through dense high film formation on prepared structures. Dura-Plate® 6000 offers the highest resistance to physical abuse from cavitation, impact, or wear and is compliant with NSF/ANSI/CAN 61 regulations. The unmatched durability and performance of Dura-Plate® 6000 assures reduced maintenance cycles and long-lasting performance.
For use over properly prepared concrete surfaces in industrial environments and water and wastewater exposures, such as but not limited to:
- Piping AWWA C210
- Channels
- Basins
-
Dura-Plate® UHS
Dura-Plate® UHS is formulated to provide maximum protection on coated surfaces through dense high film formation on prepared metal structures. Dura-Plate UHS offers the highest resistance to physical abuse from cavitation, impact, or wear and is compliant with NSF/ANSI/CAN 61 regulations. The unmatched durability and performance of Dura-Plate UHS assures reduced maintenance cycles and long-lasting performance.
For use over properly prepared metal surfaces in industrial environments and water and raw water exposures, such as but not limited to:
- Tanks AWWA D102
- Piping AWWA C210
- Vessels
- Pumps, Mechanisms, Filters, Screens
Water Treatment
-
ISO 12944 C1 - C4, 2 Coat System: Epoxy, polyurethane
Using a proprietary blend of our Macropoxy® 4600 and Acrolon® 218 HS, Sherwin-Williams produces an efficient, very high durability, two coat exterior coating system designed to protect fabricated steel in interior industrial or exterior commercial/industrial temperate with medium pollution. In accordance with ISO 12944 Standards, these systems provide more than 25 years of expected service.
Our system’s performance features maximize fabrication efficiency and produce a durable, impact resistant finish capable of withstanding handling, transportation, as well as the working environments at its final destination.
Key features and benefits:
- Less than thirty minutes between prime coat and finish coat ensures work is finished on schedule
- Higher volumes solids formulations reduces total materials handled and disposed to minimize cost exposure
- Durable impact resistant film for best finish performance
- Less than thirty minutes between prime coat and finish coat ensures work is finished on schedule
-
ISO 12944 C3 - C5, 3 Coat System: Epoxy, epoxy, polyurethane
Using a proprietary blend of our Macropoxy® 4600, Macropoxy® 2600 and Acrolon® 218 HS, Sherwin-Williams produces an efficient, high durability, two coat exterior coating system designed to protect fabricated steel in interior industrial or exterior commercial/industrial temperate or tropical with moderate pollution to temperate and subtropical with very high pollution and/or significant chloride effects. In accordance with ISO 12944 Standards, these systems provide 15 - 25 years of expected service.
Our system’s performance features maximize fabrication efficiency and produce a durable, impact resistant finish capable of withstanding handling, transportation, as well as the working environments at its final destination.
Key features and benefits:
- Less than thirty minutes between prime coat and finish coat ensures work is finished on schedule.
- Higher volumes solids formulations reduces total materials handled and disposed to minimize cost exposure
- Durable impact resistant film for best finish performance
-
ISO 12944 C4 - C5, 3 Coat System: Zinc, epoxy, polyurethane
Using a proprietary blend of our Zinc Clad® 4100, Macropoxy® 2600 and Acrolon® 218 HS, Sherwin-Williams produces an efficient, high durability, two coat exterior coating system designed to protect fabricated steel in interior industrial or exterior commercial/industrial temperate or tropical with moderate pollution to temperate and subtropical with very high pollution and/or significant chloride effects. In accordance with ISO 12944 Standards, these systems provide more than 25 years of expected service.
Our system’s performance features maximize fabrication efficiency and produce a durable, impact resistant finish capable of withstanding handling, transportation, as well as the working environments at its final destination.
Key features and benefits:
- Less than thirty minutes between prime coat and finish coat ensures work is finished on schedule
- Higher volumes solids formulations reduces total materials handled, applied. and disposed to minimize cost exposure
- Durable impact resistant film for best finish performance
