Dura-Plate® 6000
Glass-flake Reinforced Epoxy Lining
Transform Your Water & Wastewater Infrastructure with Dura-Plate 6000
When it comes to protecting assets that come into contact with potable water or wastewater, you need coating solutions that deliver proven performance, efficiency, and sustainability — without compromise.
Sherwin-Williams Dura-Plate 6000 enables rapid return-to-service and supports single-leg application, overcoming the typical application difficulties of conventional reinforced epoxy systems. It delivers exceptional long-term durability, extremely low permeability, and outstanding chemical resistance.
Dura-Plate® 6000 Reinforced Epoxy Lining offers:
- Excellent chemical resistance for extended life cycle expectations
- High film build and high strength characteristics
- Increased productivity time: 10 hour return-to-service time
- High performance application- 125-250 mils
- NSF 61 Approved to 125 mils
- Single Leg or Plural
- Low temp cure to 35°F/1.7°C
Why Dura-Plate 6000?
High Strength Reinforced Epoxy Lining
- Increased productivity
- Cost effective
- High performance application
- Long-term life expectancy
Ready To Connect?
Our sales and tech teams are prepared to answer questions regarding which of our coatings and lining systems for water and wastewater will best suit your project— it is never too early to discuss!
Features & Benefits
Dura-Plate® 6000 is a 100% solids, high build, high strength, reinforced epoxy lining for concrete and steel in potable water and severe service environments with 10 hour return-to-service times applied via single leg application and the option for plural component application. It eliminates the application challenges associated with fiber/microfiber filled products while providing long-term life expectancy with extremely low permeability and excellent chemical resistance.
Application Time Savings

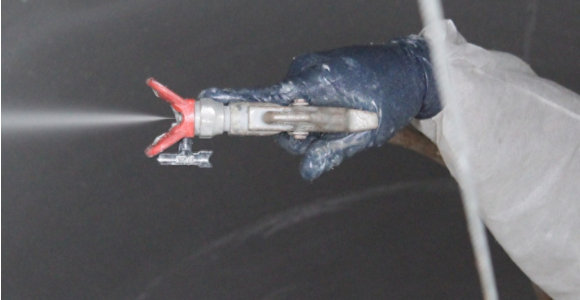

- With a 10 hour return-to-service, extreme high build characteristics, long recoat window, one hour pot life and option to apply as an epoxy mortar, reinforced DURA-PLATE 6000 will increase production rates.
- The glass flake reinforced technology eliminates the application challenges associated with fiber/microfiber filled products.
- Low temperature cure.
Cost Effectiveness
- Single leg application eliminates the expense of renting a generator and a plural pump operator.
- The 28-day extended recoat window reduces missed recoats, resulting in significant cost savings.
Tested and Certified Protection
- Hangs at 125-250 mils (3,125-6,250 microns) in a single application. NSF 61 Approved to 125 mils.
Extended Life of Assets
- High film build and high strength characteristics, extremely low permeability, and excellent chemical resistance enables increased life cycle expectations.
Recommended Uses
Dura-Plate® 6000 was formulated for use over properly prepared steel and concrete surfaces in industrial environments and water and wastewater exposures, such as but not limited to:

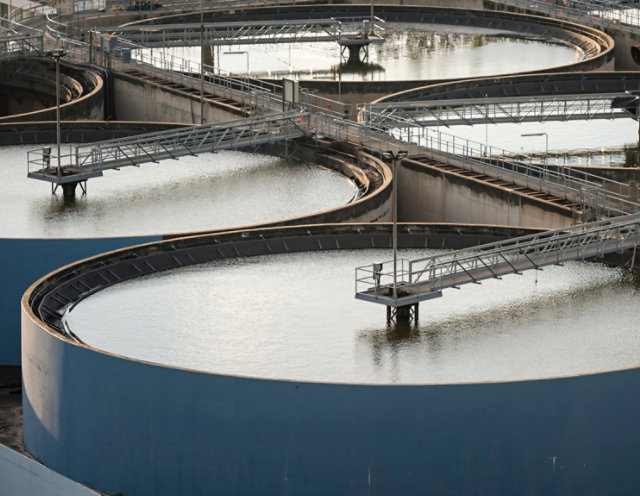

- Severe wastewater immersion and headspace environments
- Sewer collection systems
- Wastewater treatment plants
- Industrial and wastewater tankage
- Potable water environments
- USDA-inspected food processing facilities
