How Protective Coatings Extend the Service Life of Steel Pile Installations

Steel pile installations face ongoing challenges from corrosion, soil conditions, frost heave and adfreeze forces that can reduce long-term performance. High-performance polyurethane protective coatings help address these challenges by creating a durable corrosion barrier while reducing soil adhesion and uplift potential.

For engineers and specifiers designing pile foundations in demanding environments, selecting the right protective coating can improve durability, reduce maintenance requirements and lower total project costs. Polyurethane coatings such as Poly-Cote™ 110 from Sherwin-Williams Protective & Marine are designed to withstand pile installation stresses while helping extend service life in corrosive and frost-prone conditions.

In this guide, we explain how protective coatings help prevent steel pile corrosion, reduce adfreeze uplift and improve long-term performance.

In this article:

• Balancing Corrosion Protection and Adfreeze Mitigation

• Adhesion and Surface Properties Prevent Corrosion and Uplift

• Durable Coatings Protect Against Damage During Installation

• Ultra-Smooth Coatings Mitigate Uplift

• Combination of Coating Properties Reduce Installation Costs

• High-Performance Coatings Improve Long-Term Performance

• FAQs

Balancing Corrosion Protection and Adfreeze Mitigation in Steel Pile Coatings

For specifiers of industrial coatings, the conversation is usually about making things stick. But when it comes to the coatings used on steel piles that will be driven into the ground, the discussion must also expand to reducing soil-to-coating friction, especially in conditions where frost adfreeze or expansive soils can create uplift forces.

Naturally, specifiers want to select high-performance coatings that will adhere tightly to a pile’s steel surface for as long as possible to mitigate corrosion and deliver a lengthy service life. But they also need those coatings to prevent soil from sticking to their exterior surface, particularly in cold climates.

When selecting high-performance protective coatings for piles, this contrasting juxtaposition of properties is an important combination, as it can lead to multiple benefits, including:

• Ensuring superior corrosion protection in corrosive soils with less coating material applied
• Reducing the weight, embedment length and cost of steel due to eliminating corrosion allowances for piles
• Mitigating the pile uplift that occurs from frost heaves
• Reducing the overall total cost of ownership for pile installations

Finding the optimal coating material that resists abrasions and impact during installation, mitigates corrosion and minimizes the effects of adfreeze and frost heave displacement is critical to realizing all these advantages (Figure 1).

Adhesion and Surface Properties in Steel Pile Coatings Prevent Corrosion and Uplift

For maximum protection, coatings need to stick to steel pile surfaces for as long as possible. That includes enduring the rigors of being hammered and vibrated into the earth without scraping away or chipping off, as well as the onslaught of corrosive forces that will attack the coatings and steel over time—both above and below ground. Ensuring strong coating-to-substrate adherence is critical to long-term pile performance.

With that covered, specifiers’ attention should turn to the outer surface of the protective coatings, as they need to consider how well those coatings can resist the tendency for soils to stick to them during freezing conditions. This phenomenon is known as adfreeze, and it contributes to piles lifting or shifting in the ground due to frost heaves. The soil freezes and adheres to piles in clumps, providing a foothold for the surrounding earth to push against as frost expands it. The smoother the coated surface, the less adfreeze will occur on piles—and the less potential will exist for pile uplift and shifting.

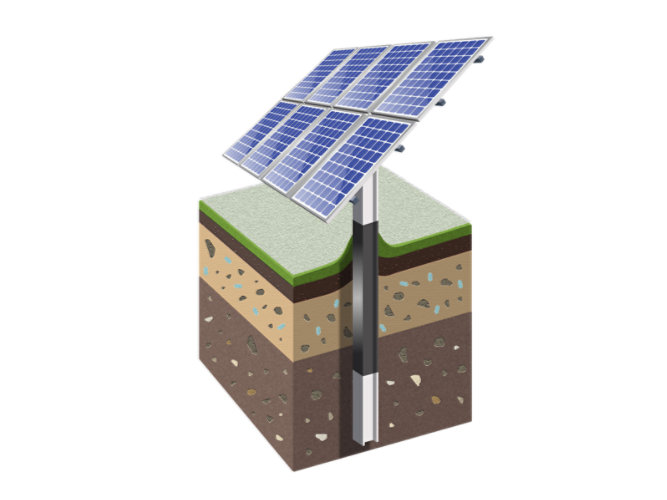

The upper subsurface of the earth is the most critical region for mitigating both pile corrosion and uplift. In this active zone, piles are subject to oxygen above ground; moisture and dissolved salts both above and below ground; and frost movement from below. Without mitigating these conditions via protective coatings, steel pilings would need to be constructed of thicker, heavier steel to allow for corrosion, as well as be embedded deeper into the ground to reduce uplift potential, which means the piles would need to be longer. Both corrosion allowance concessions naturally increase material, freight and installation costs.

Specifiers can forgo those undesirable increases by recommending that piles always be coated with materials that favor maximum corrosion protection and maximum resistance to adfreeze. Their best bet is likely a polyurethane material, as polyurethanes have sufficient hardness and durability to withstand pile driving installations, while also having sufficient flexibility to minimize the occurrence of gouges and abrasions as coated steel is driven through rocky soil. Choosing a polyurethane that delivers an ultra-smooth finish will help them meet the goal of reducing adfreeze and uplift potential.

Durable Steel Pile Coatings Protect Against Damage During Installation

With corrosion mitigation being a primary key to pile installation longevity, specifiers can turn to Poly-Cote™ 110 from Sherwin-Willliams Protective & Marine for protection. This two-component, aromatic polyurethane offers long-lasting corrosion barrier protection for steel pilings and ground-line structural supports used across critical infrastructure, including solar panel arrays, utility substations, transmission and distribution structures, retaining walls and piers (Figure 2). This proven approach reflects decades of field experience with buried-service coatings in aggressive ground-line and below-grade environments, where moisture, dissolved salts and variable soil chemistry can accelerate corrosion and compromise long-term performance.

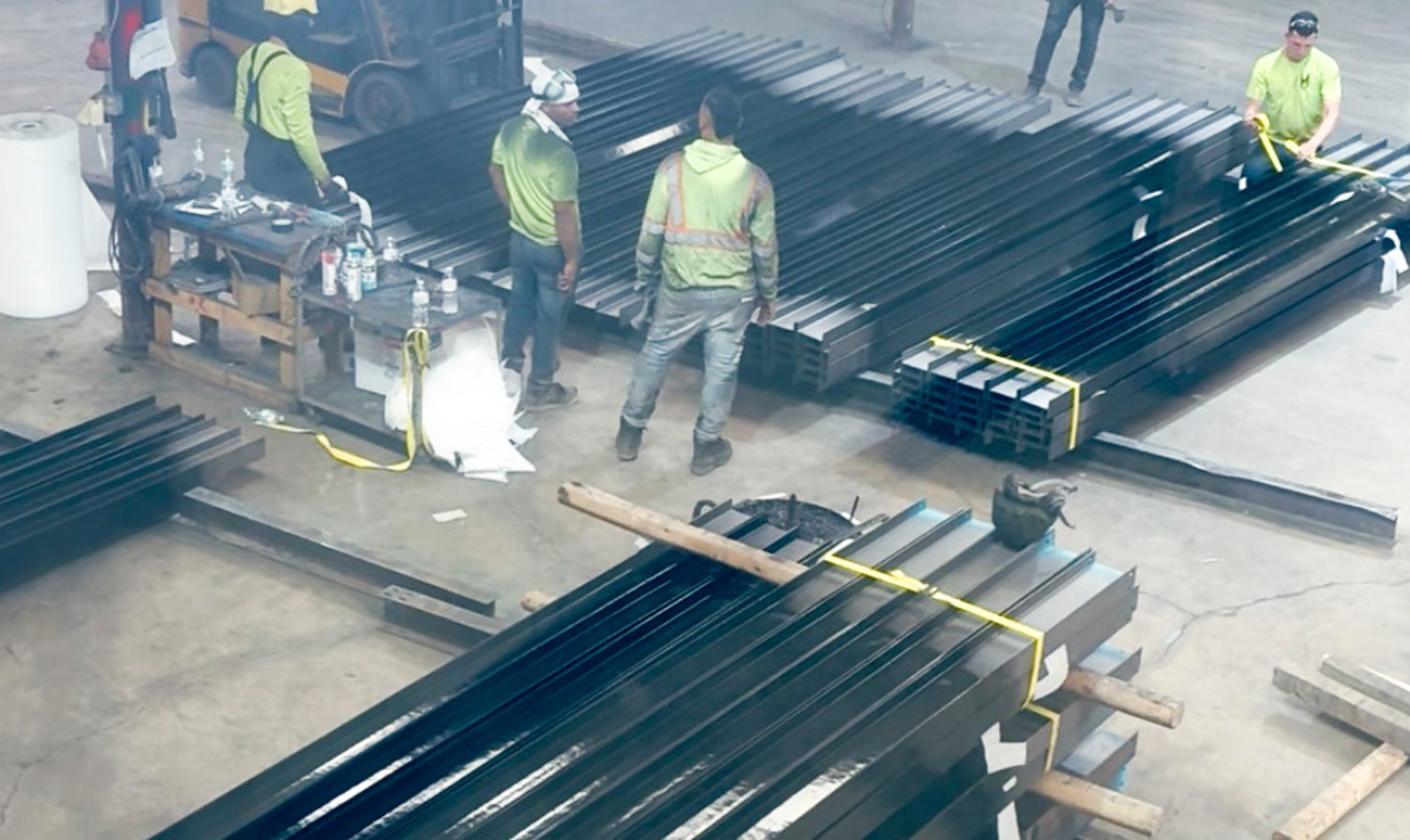

Poly-Cote 110 has high impact resistance, which helps the coating maintain integrity during transportation, handling and pile driving (Figure 3). During each of those activities, the durable coating effectively resists the abrasions, gouges and other coating damage that could otherwise occur along a pile’s entire journey from the fabrication shop to its installed state. Any such damage could expose the steel substrate beneath the protective coatings and provide a direct path for corrosion to form and proliferate. By mitigating this damage potential, particularly during the rigors of pile driving, Poly-Cote 110 ensures longer-term performance against corrosion.

The coating’s ultra-low permeability also makes it suitable for a wide range of corrosive soil environments, including low-resistivity, low-pH soils with high chloride or sulfate content and high soil moisture content. With the coating applied, designers can eliminate the steel pile’s corrosion allowance, meaning they can use thinner steel since they won’t have to account for the metal loss that would occur on uncoated steel due to corrosion. Steel cost savings follow. The coating also provides excellent atmospheric corrosion protection.

Ultra-Smooth Steel Pile Coatings Mitigate Uplift

The act of pile driving itself is meant to mitigate uplift from frost heave compared to when auguring holes, placing piles inside and backfilling the voids with concrete and soil. Driving a pile into the ground greatly reduces the amount of soil that is disturbed. The soil surrounding a driven pile therefore remains dense and tightly confined to the pile. Backfilled holes are more likely to experience differential movement as the loosened soil is not as compact as it was before digging.

Still, piles driven into the ground are subject to adfreeze and the uplift forces it welcomes. Any soil that’s able to bond to a coated pile during freezing conditions becomes an attached ledge that can serve as a foothold for the surrounding soil and ice to push against as the earth expands during freezing conditions. The stronger that bond and the more soil stuck to the piling, the greater the uplift potential.

The key to mitigating this detrimental force is to reduce the potential for adfreeze. If soil can’t stick to a pile, then there’s less horizontal surface area available to transfer the lift potential to the pile. Achieving this adfreeze resistance requires having as smooth of a surface possible on coated piles. Coated steel surfaces have been found to reduce frost adfreeze bond stress by 40% to 50% compared to bare steel in independent laboratory testing and field experienced engineering reviews.

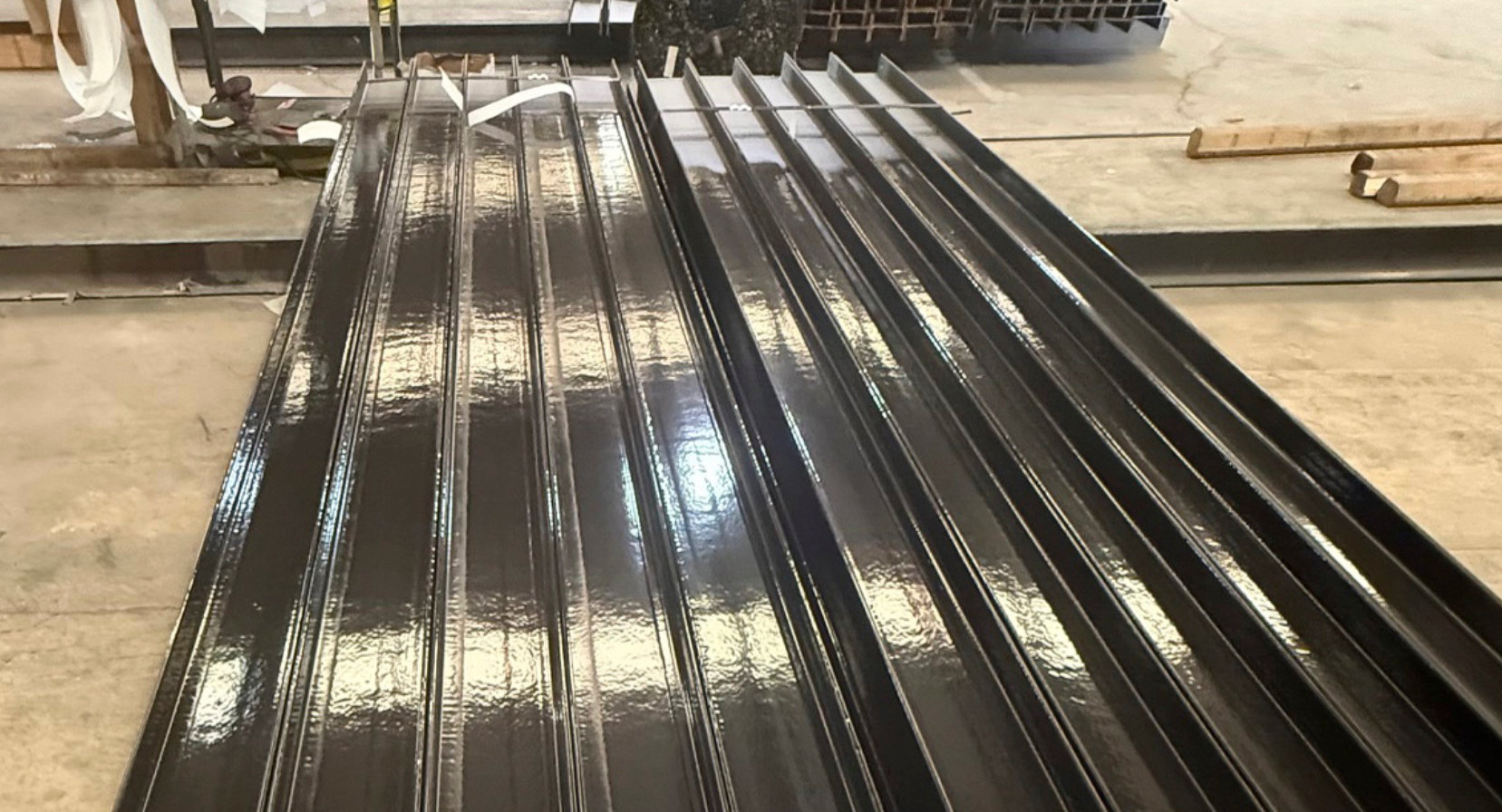

Poly-Cote 110 delivers on the smooth application front with a cured, finished surface featuring a particularly low surface energy (Figure 4). The better controlled the application process, the smoother the surface. Water beads up on it and runs right off just like on a waxed car. Frost and ice therefore have a harder time forming on the coating’s surface, which in turn means less potential for adfreeze. As a result, less material will be able to stick to buried pile surfaces, which means less potential for uplift forces to affect the pile.

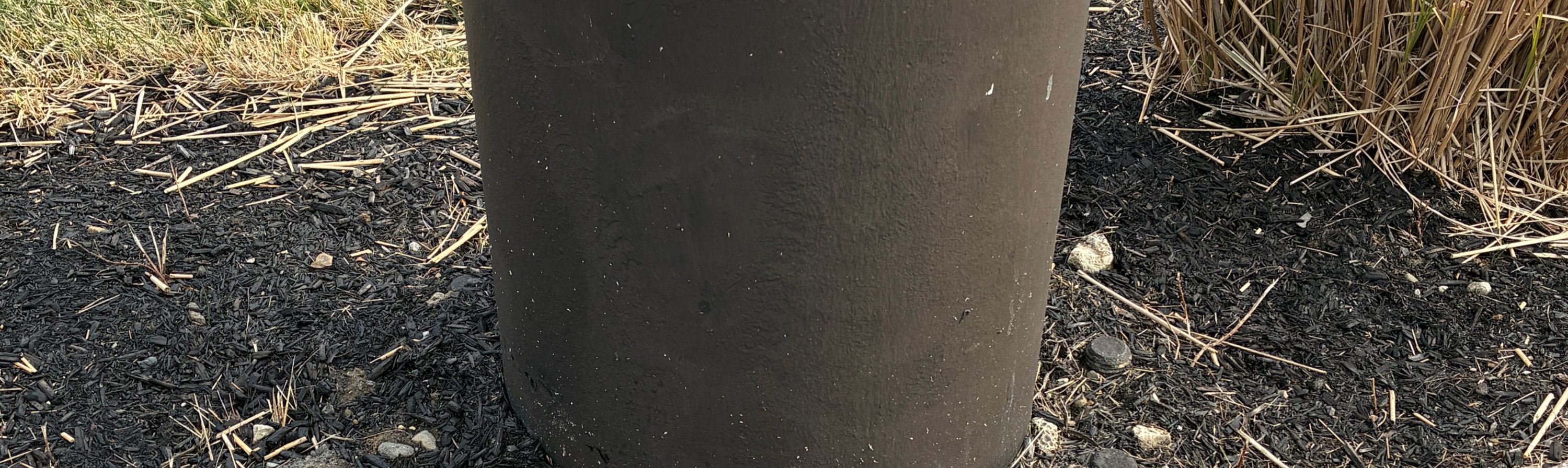

Interestingly, Poly-Cote 110 is applied only to the portion of the pile exposed to the active zone and all the way upwards aboveground to protect against atmospheric corrosion. This design leaves the deeper portion of the pile exposed purposely to preserve its friction capacity within non-frozen earth to minimize movement potential. In the coated portion underground, Poly-Cote 110 allows most moisture and heaving soil to glide past a pile’s coated surface, thereby minimizing the directional forces that would otherwise be present with soil and ice adhered to the pile.

Combination of Coating Properties Reduces Steel Pile Installation Costs

A combination of cost-reducing capabilities makes Poly-Cote 110 a particularly viable material for coating piles.

As mentioned above, specifiers can reduce the thickness and length of piles when they’re coated, which reduces steel costs. Based on frozen soil load tests, the piles have approximately 40% lower coating film friction, which means there’s far less ground force pushing up on them. Where site conditions allow, this decrease enables owners to reduce pile embedment lengths by 20% to 30%. Shorter piles cost less and require less labor to install for further savings.

Poly-Cote 110 coated piles also provide a significant advantage over alternative solutions that rely on pre-drilled holes or sleeves to mitigate soil adhesion. By eliminating the need for pre-drilling, contractors can avoid the added mobilization, equipment and labor costs associated with drilling operations, while also accelerating installation schedules. Driven piles can be installed in a single, continuous operation, reducing both project duration and risk of delays.

Poly-Cote 110 was also developed for high throughput production operations, with fast dry-to-handle and curing speeds, as well as the capability to achieve the required coating thickness in one coat, even on seams, welds and rivets. Both features help to reduce the overall installed costs for pile installation owners.

High-Performance Coatings Improve Long-Term Steel Pile Performance

The use of select high-performance polyurethane coatings is redefining what specifiers can expect from steel pile installations. By delivering a combination of strong substrate adhesion and low surface energy on its outer skin, materials such as Poly-Cote 110 simultaneously combat corrosion and minimize adfreeze-driven uplift. This dual capability helps to maintain long-term performance and structural integrity in harsh, variable soil environments while allowing specifiers to use lighter, shorter piles. Equally important, coatings like Poly-Cote 110 help preserve pile installation integrity by withstanding the mechanical stresses of transport, handling and installation, ensuring protection remains intact from fabrication through service life. The cumulative effect is longer service life, reduced maintenance risk and a lower total cost of ownership driven by smarter material selection.

Protect Solar Pile Foundations with Coatings from Sherwin-Williams

Selecting a protective coating is not just a material decision—it directly impacts ease of installation, long-term reliability and how well steel piles perform in real-world soil and climate conditions. From resisting installation damage to reducing adfreeze-related uplift, the right coating system plays a critical role throughout the life of the structure.

Sherwin-Williams Protective & Marine works with engineers, specifiers and contractors to support coating selection, application and performance across a wide range of infrastructure and energy projects. With field-proven solutions like Poly-Cote™ 110 and decades of experience in below-grade environments, teams can move forward with confidence in their coating strategy.

To learn more about protective coatings for steel pile installations or to discuss the right solution for your project, contact Sherwin-Williams today.

ABOUT THE AUTHORS

Ivan Taylor is a Project Development Manager for Sherwin-Williams Protective & Marine. He has served the coatings industry with Sherwin-Williams for 27 years. His responsibilities with the company have included District Sales Manager, District City Manager, Protective & Marine Coatings Representative, Commercial Branch Manager and other roles within the Paint Stores Group. He is an AMPP-Certified Coating Inspector and an AMPP Concrete Coatings Inspector. Contact: Ivan.G.Taylor@sherwin.com

Kevin Gamble is Market Segment Manager, Power Generation, for Sherwin-Williams Protective & Marine, where he leads market strategy and portfolio development across nuclear, natural gas, hydropower, solar and wind power generation energy markets. With more than a decade of experience supporting the energy sector, he has partnered with utilities and associated organizations to help address the challenges facing critical energy infrastructure. Gamble holds a Master of Arts in Communication from The University of Akron and a Bachelor of Science in Communication Studies from Western Oregon University. Contact: Kevin.C.Gamble@sherwin.com
