Key Energy Protection Products
Long-Lasting Coatings and Linings
Durable Coating & Lining Systems for the Energy Sector
Leveraging cutting-edge chemical formulations, Sherwin-Williams coatings and linings provide exceptional resistance to the corrosive effects prevalent in the energy sector. Our mission is to support you in protecting your infrastructure while fostering a safer operational environment. With straightforward application and superior adhesion properties, our systems guarantee a smooth and efficient application process, enhancing operational efficiency and reducing downtime.
We encourage you to review some of our proven solutions below and to reach out learn which systems will work best for your application.
-
Magnalux™ 2100FF
Magnalux 2100FF is a glass flake enhanced novolac vinyl ester which offers resistance to many aromatic and aliphatic solvents, organic and mineral acids, strong oxidizers and excellent resistance to thermal degradation. Magnalux 2100FF is designed for application in two layers for use as an internal tank and vessel lining, with excellent resistance to chemical environments across the full pH range.
- Suitable for full scope of lipid-based feedstocks up to 180⁰F
For use over properly prepared steel and concrete surfaces in immersion and atmospheric exposure including:
- Containment areas for flooring
- Chemical processing tanks
- Feedstock tanks
- Petrochemical tanks
- Beef tallow tanks
- Cooking oil tanks
- Lipid-based feedstocks tanks
-
Nova-Plate® 325
Nova-Plate 325 is an amine cured, glass and ceramic-filled tank lining that utilizes advanced epoxy novolac technology. It is engineered to protect steel tank interiors from chemicals stored at high temperatures and high pressures. It provides quick return to service, high-film build and can be used in applications where conventional tank linings are not recommended.
- Suitable for full scope of lipid-based feedstocks up to 160⁰F
For use over properly prepared steel surfaces in immersion and atmospheric exposure including:
- Containment areas for flooring
- Storage tanks up to 149°C
- Secondary containment
- Cathodic protection systems
- Ethanol storage tanks
- Tanks and vessels
- Piping and valves
-
Nova-Plate® 360
Nova-Plate 360 is a single-leg airless spray, easy-to-use lining. It is an API-compliant, flake-reinforced, PTFE-filled, novolac-based tank lining. This tank lining helps save time and money through reduced downtime for application and unparalleled protection to the interior of steel tanks. Nova-Plate 360 offers a wide range of chemical resistance and can return to service in 24 hours.
- Suitable for full scope of lipid-based feedstocks up to 160⁰F
For use over properly prepared steel surfaces in immersion and atmospheric exposure including:
- Containment areas for flooring
- Secondary containment
- Cathodic protection systems
- Methanol and ethanol storage tanks
- Tanks and vessels
- Piping and valves
Biofuel
-
Pipeclad® 2000 & Pipeclad® 2060 MRO
This dual layer system consists of a Pipeclad 2060 MRO abrasion-resistant overcoat (ARO) applied with Pipeclad 2000 FBE. This provides an extremely robust protective coating to for the exterior of pipelines. Pipeclad 2060 features an innovation that provides superior protection against moisture and corrosive elements in the environment, while also providing abrasion resistance equal to typical ARO coatings. It provides optimum protection for the corrosion protection layer against both moisture uptake, as well as damage throughout storage, transit, construction, and service of the pipeline, including during horizontal directional drilling. By protecting pipelines against backfilling damage, Pipeclad 2060 allows for subsequent DCVG/ACVG evaluation thereby providing for faster commissioning time. This coating is designed for service temperatures up to 150°C dependent upon the base layer of corrosion protection which is applied.
For use over properly prepared steel and industrial environments for:
- Enhanced corrosion protection
- Best-in-Class damage and moisture resistance
- Protection against high service temperatures
- Protection against backfilling damage for subsequent DCVG/ACVG evaluation and rapid commissioning time
-
Pipeclad® HXR0015 & Pipeclad® 702N
This dual layer system consists of a Pipeclad 702N thermosetting fusion bonded epoxy (FBE) powder coating topcpoat over the phenolic primer Pipeclad HXR0015. This system is engineered for use inside pipelines to protect against corrosion and chemical degradation as well as optimize the flow efficiency within the pipeline by assisting the formation of laminar flow.
For use over properly prepared steel in industrial environments for:
- CO2 injection WAG
- Oil/Water/Gas production
- Brine injection/disposal
- Flow lines
- Line pipes
- Use temperature to 121°C (250°F)
Carbon Capture
-
Poly-Cote™ 110
Poly-Cote 110 is a two-component, aromatic polyurethane with optimal build properties and aesthetic properties. It provides superior corrosion protection and is suitable in all soil conditions including locations with low resistivity, low pH, high levels of chlorides or sulfates, and high soil moisture content. Poly-Cote 110 eliminates the need for corrosion allowance, thereby reducing steel weight and cost. Other cost savings are derived from the ease of installation and fast cure times providing optimal shop throughput and efficiency.
For use over properly prepared steel.
- Value engineered solution and an enabling technology
- Ultra-durable hydrophobic film
- Non-sacrificial barrier to corrosion
- Superior chemical and abrasion resistance
- Outstanding adhesion
- High-build formula
- Extremely fast curing
Solar
-
Dura-Plate® SW-501
Dura-Plate SW-501 is a mechanically resistant 2-pack epoxy coating with 100 % volume solids. This solvent free coating is fast curing and is extremely durable. Dura-Plate SW-501 offers the highest corrosion protection for steel under permanent stress by seawater and in tidal areas such as steel foundation structures.
For use over properly prepared steel surfaces in extreme environments.
- High abrasion resistance, as well as mechanically robust
- Applicable in one layer from 150 microns up to 1000 microns with standard airless, brush and roller
- Suitable for application in combination with cathodic protection (CP) systems
- Norsok standard M-501, system No. 7A/7B
-
Repacor™ SW-1000
Repacor SW-1000 is a two-pack solvent-free glass flake polyaspartic repair coating from the cartridge, which enables fast, easy and cost-effective offshore repair. Repacor SW-1000 meets the high requirements for corrosion protection and exhibits ease of application making it the ideal offshore repair solution.
For use over properly prepared surfaces in a range of difficult conditions including climate, weather, and accessibility.
- Foundations
- Extremely fast curing time even under water, with only one layer
- UV-resistance without topcoat
- Surface tolerant – can be used on many substrates
- Corrosion protection at 500 microns, similar to original shop coating
- Tested in accordance with ISO 20340 ageing cyclic corrosion test
Wind
-
Dura-Sub™ C1230
Dura-Sub C1230 is a two-component, ultra-high solids, edge retentive, ceramic and glass flaked reinforced epoxy novolac. This solvent-free coating provides rapid throughput times and is designed for high temperature subsea applications <392°F (200°C). Dura-Sub C1230 has high build capabilities and can be applied in a single coat at 14 mils (350 microns).
For use over properly prepared steel surfaces in industrial and immersed environments such as but not limited to:
- Permanently immersed steel subsea processing equipment
- Trees
- Manifolds
- Sleds
- Jumpers
- Piping and valves < 356°F/180°C
-
Envirolastic® 940 LV
Envirolastic 940 LV is our third-generation polyaspartic technology, offering enhanced throughput, direct-to-metal (DTM) application and fast-drying characteristics for asset owners to boost productivity and reduce costs in shop and field. EnviroLastic 940 LV also provides proven performance characteristics for specifiers and enables an extended painting season, with application temperatures as low as 35°F.
For use over properly prepared steel surfaces in industrial environments and oil and gas exposures, such as but not limited to:
- Onshore and offshore oil & gas assets
- Structures
- Tank exteriors
- Pipes
- Production tanks
-
Repacor™ SW-1000
Repacor SW-1000 is a two-pack solvent-free glass flake polyaspartic repair coating from the cartridge, which enables fast, easy and cost-effective offshore repair. Repacor SW-1000 meets the high requirements for corrosion protection and exhibits ease of application making it the ideal offshore repair solution.
For use over properly prepared surfaces in a range of difficult conditions including climate, weather and accessibility.
- Platform structures
- Tank exteriors
- Pipes
- Production tanks
-
Dura-Plate® SW-501
Dura-Plate SW-501 is a mechanically resistant 2-pack epoxy coating with 100 % volume solids. This solvent free coating is fast curing and is extremely durable. Dura-Plate SW-501 offers the highest corrosion protection for steel under permanent stress by seawater and in tidal areas such as steel foundation structures.
For use over properly prepared steel surfaces in extreme environments.
- Platform structures
- Tank exteriors
- Pipes
- Production tanks
-
FIRETEX® M90/02
FIRETEX® M90/02 is a two-component epoxy coating used to enhance the fire resistance of structural materials by providing a layer of insulation, which is formed as a result of a chemical reaction initiated by fire. This insulation reduces the rate of heat transfer and extends the time period for which the structural material can resist the weakening effects of the heat.
For use over properly prepared steel in offshore environments such as but not limited to:
- Offshore structures
- Columns, beams, and bracing
- Pipe racks
- Support structures: skirts, legs and saddles
- Vessels, tanks, spheres, and spheroids
- Marine docks
- Modular units
Offshore
-
Pipeclad® 2000
Pipeclad 2000 is a thermosetting fusion bonded epoxy coating engineered to be applied to pipelines. Pipeclad 2000 can be used in single layer applications, as a primer layer for dual layer FBE, as a primer layer for 3-layer PE/PP applications, and as a girth weld coating.
For use over properly prepared steel and fusion-bonded epoxy coated pipe in industrial environments such as but not limited to:
- Pipeline
- Joints
- Valves
- Fittings
- Oil Country Tubular Goods (OCTG)
-
Pipeclad® 2060 MRO
Pipeclad 2060 Moisture-Resistant Overcoat is the top layer of a dual layer powder system that combines enhanced barrier properties with the performance of high operating temperature (HOT) and abrasion-resistant overcoat (ARO) technology.
It provides optimum physical protection for the anti-corrosion coating against moisture uptake and physical damage, specifically during backfilling and horizontal directional drilling applications. With the added benefit of service temperatures up to 302°F/150°C (dependent upon the base layer of corrosion protection).
Pipeclad 2060 MRO may be applied in both plant and field applications, such as but not limited to:
- Pipeline
- Joints
- Valves
- Fittings
- Oil Country Tubular Goods (OCTG)
-
Pipeclad® HOT Series
The Pipeclad HOT series is Sherwin-Williams family of thermosetting, epoxy, powder coatings formulated for higher glass transition temperatures (Tg), greater flexibility and enhanced barrier properties. The advanced capabilities of HOT FBE coatings are facilitating groundbreaking exploration activities, empowering the oil and gas industry to access new oil fields that were once inaccessible. This progress is made possible by coatings formulators who have implemented a range of molecular-level modifications to FBEs. These enhancements have successfully elevated the glass transition (Tg) temperature of the coatings, increased their flexibility, improved crosslink density, and strengthened their damage resistance. These sophisticated properties not only enable operators to drill deeper wells and extract hotter materials, but they also allow producers to utilize reel-lay techniques for more efficient pipeline installations, surpassing the traditional S-lay and J-lay methods.
Pipeclad Hot 120 Designed for continuous operating temperature 248°F/120°C
Pipeclad Hot 150 Designed for continuous operating temperature 302°F/150°C
Pipeclad Hot 180 Designed for continuous operating temperature 326°F/180°C
Pipeclad Hot 200 Designed for continuous operating temperature 392°F/200°C
For use over properly prepared steel and fusion-bonded epoxy coated pipe in HOT industrial environments such as but not limited to:
- Offshore under insultation
- High glass trasition with simoultaneous high flexibilty
- Suitable for reel-lay application - unique selling point
- Pipeline
- Joints
- Valves
- Fittings
- Oil Country Tubular Goods (OCTG)
-
Pipeclad® 5000
Pipeclad 5000 is a two-component, ultra high-solids, amine-cured epoxy. Designed for rapid pipe installation on the right of way, Pipeclad 5000 provides exceptional corrosion and chemical resistance for both girth weld and spot repair applications. Providing a synergism with cathodic protection, Pipeclad 5000 affords unparalleled protection for your high value pipeline projects.
For use over properly prepared steel and fusion-bonded epoxy coated pipe in industrial environments, such as but not limited to:
- Buried pipelines – pipes, valves, bends, fittings, fabricated sections and air-to-soil transitions
- Maintenance or rehabilitation coating of existing lines after removal of old coatings or tape
- Spot repair/touch-up of mechanically damaged plant-applied coating
- Girth weld coating on new installations and field tie-ins
- Shop spray applications
- Buried and ground-contact utilities
Pipeline Below Ground
-
Heat-Flex® ACE
Heat-Flex ACE is a next-generation ultra-high solids advanced novolac epoxy for CUI. Developed with a functional chemical enhancement, surpassing performance capabilities of traditional solvent-based epoxy phenolic and novolac coatings. This advanced CUI epoxy technology it offers unrivalled performance and application properties through the robustness of the resin system. Heat-Flex ACE provides external protection of processign equpment operating between-321°F (-196°C) to 450°F (232°C) and is suitable for use in new construction and maintenance projects.
For use over properly prepared carbon and stainless steel in insulated and uninsulated service, such as but not limited to:
- Process pipes
- Valves
- Vessels
- Tanks
-
Heat-Flex® AEB
Heat-Flex Advanced Energy Barrier (AEB) is an engineering thermal insulative coating solution designed to eliminate corrosion under insulation (CUI). By replacing traditional bulky mineral-based insulation systems on storage tanks, process vessels and piping, Heat-Flex AEB provides a sustainable and efficient solution for maintaining optimal operating temperatures. Its application simplifies installation, reduces labor costs and enhances safety by minimizing worker proximity to hot surfaces.
By eliminating the need for traditional insulation materials, Heat-Flex AEB significantly reduces the environmental impact and extends the lifespan of steel assets, making it a superior choice for industrial insulation needs.
For use over properly prepared carbon and stainless steel, such as but not limited to:
- Storage Tanks and Vessels
- Process Piping
- Valves and Fittings
- Offshore and Onshore Facilities
- Chemical and Petrochemical Plants
-
Heat-Flex® 7000
Heat-Flex 7000 is a one component thermal insulative coating system that offers personal protection, solar heat reflectivity and resultant insulation capabilities for an array of industrial applications. This single-component, spray-applied coating system meets Occupational Safety and Health Administration standards for protecting personnel from skin-contact burns on assets operating at temperatures up to 350°F (177°C) in one coat applied at 50 mils.
A single coat can eliminate the costs of installing, inspecting and repairing conventional insulation and cladding systems for personnel skin-contact protection, thereby also eliminating the common threat of corrosion under insulation (CUI).
In addition, the coating reduces heat loss enabling process stability.
For use over properly prepared carbon and stainless steel in insulated and uninsulated service, such as but not limited to:
- Tanks
- Piping
- Vessels
- Furnaces
- Stacks
- Offshore Assets/Marine
- Containers
-

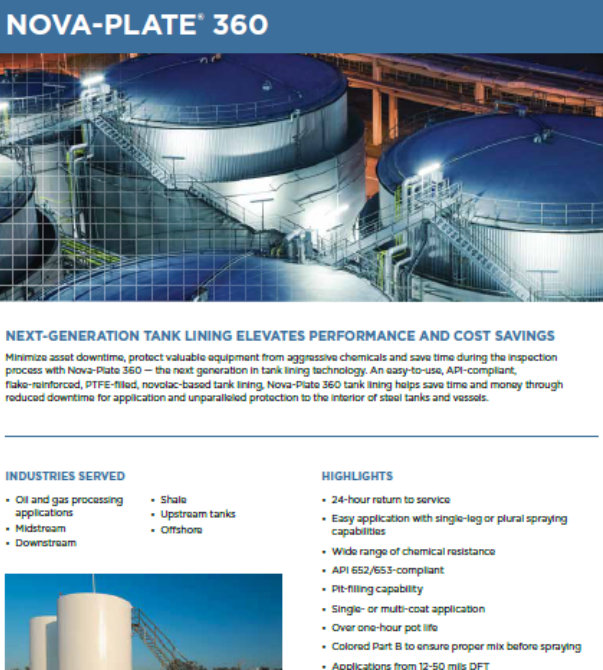

Nova-Plate® 360
Nova-Plate 360 is an easy-to-use, API-compliant, flake-reinforced, PTFE-filled, novolac-based tank lining. This tank lining helps save time and money through reduced downtime for application and unparalleled protection to the interior of steel tanks. Nova-Plate 360 offers a wide range of chemical resistance and can return to service in 24 hours.
For use over properly prepared steel surfaces in immersion and atmospheric exposure including:
- Vessels or tanks for crude oil at elevated temperatures
- Bulk storage tanks for petrochemicals
- Bio-fuels linings (including methanol and biodiesel)
-
Magnalux™ 2100FF
Magnalux 2100FF is a glass flake enhanced novolac vinyl ester which offers resistance to many aromatic and aliphatic solvents, organic and mineral acids, strong oxidizers and excellent resistance to thermal degradation. Magnalux 2100 is designed for application in two layers for use as an internal tank and vessel lining, with excellent resistance to chemical environments across the full pH range.
For use over properly prepared steel and concrete surfaces in immersion and atmospheric exposure including:
- Chemical processing tanks
- Sour crude oil tanks
- Chemical containment areas with exposure to low pH
- Atmospheric service where there is exposure to acidic fumes
- Flue gas environments up to 300°F (149°C)
- Vessels with aggressive environments
-
FIRETEX® M90/03
FIRETEX M90/03 enhances the fire resistance of steel by providing a robust layer of insulation, or char, that forms as a result of a chemical reaction initiated by fire. This insulation reduces the rate of heat transfer into the steel and extends the time period for which the structure can maintain its structural integrity during a hydrocarbon pool fire. FIRETEX M90/03 Epoxy Intumescent Coating is predominantly used to protect steel structures within fire risk areas.
For use over properly prepared steel surfaces in industrial environments such as but not limited to:
- Refineries
- Chemical plants
- LNG terminals
- Columns, beams, and bracing
- Pipe racks
- Support structures: skirts, legs and saddles
- Vessels, tanks, spheres, and spheroids
- Marine docks
- Modular units
Refining & Chemical Processing
Coatings for Corrosion Under Insulation (CUI) Solutions
Thermal Insulative Coatings (TIC) Solutions
Protective Tank Linings
Hydrocarbon Fire & Cyrogenic Spill Protection
-
Pipeclad™ Frac-Shun ERC
Pipeclad Frac-Shun ERC is a coating system designed to greatly reduce erosion from multiphase flow and grit inside of metal piping systems. It consists of a liquid applied phenolic primer followed by a fusion bonded epoxy intermediate coat, and a thermoplastic topcoat. Pipeclad Frac-Shun ERC was designed to provide unrivaled protection to well heads and piping used in fracking operations. It was specifically designed for fracking equipment, however is the ideal protection for any metal pipe components at risk of metal loss due to erosion of the inner diameter.
For use over properly prepared steel surfaces including:
- Wellheads
- Flow risers
- Piping
- Elbows
- Segments with complex geometry
-
Heat-Flex® 1200 Plus
Heat-Flex® 1200 Plus is a two-component, micaceous iron oxide, inert multi-polymeric matrix coating that provides added mechanical resistance and corrosion protection in atmospheric environments. Heat-Flex 1200 Plus is ideal for insulated pipes, valves and process vessels that face high-temperature service and aggressive cyclic service at high temperatures.
- Suitable for CUI temperature ranging from -321°F (-196°C) to 1200°F (649°C)
For use over properly prepared steel surfaces in immersion and atmospheric exposure including:
- Insulated pipes
- Valves
- Process vessels
-
Nova-Plate® 360
Nova-Plate 360 is a single-leg airless spray, easy-to-use lining. It is an API-compliant, flake-reinforced, PTFE-filled, novolac-based tank lining. This tank lining helps save time and money through reduced downtime for application and unparalleled protection to the interior of steel tanks. Nova-Plate 360 offers a wide range of chemical resistance and can return to service in 24 hours.
For use over properly prepared steel surfaces in immersion and atmospheric exposure including:
- Production tanks
- Heater treaters
- Separators
- Slug catchers
- Pig launchers
Shale
-
Magnalux™ 2100FF
Magnalux 2100FF is a glass flake enhanced novolac vinyl ester which offers resistance to many aromatic and aliphatic solvents, organic and mineral acids, strong oxidizers and excellent resistance to thermal degradation. Magnalux 2100FF is designed for application in two layers for use as an internal tank and vessel lining, with excellent resistance to chemical environments across the full pH range.
For use over properly prepared steel and concrete surfaces in immersion and atmospheric exposure including:
- Petrochemicals and oil storage tanks
- Chemical containment areas with exposure to low pH
-
Nova-Plate® 360
Nova-Plate 360 is a single-leg airless spray, easy-to-use lining. It is an API-compliant, flake-reinforced, PTFE-filled, novolac-based tank lining. This tank lining helps save time and money through reduced downtime for application and unparalleled protection to the interior of steel tanks. Nova-Plate 360 offers a wide range of chemical resistance and can return to service in 24 hours.
For use over properly prepared steel surfaces in immersion and atmospheric exposure including:
- Petrochemicals and oil storage tanks
- Methanol and ethanol storage tanks
- Chemical containment areas
-
DURA-PLATE® UHS
DURA-PLATE UHS is a two-component, ultra high-solids epoxy amine. It is engineered specifically for immersion service in ballast tanks, oil tanks and refined fuel storage tanks, Dura-Plate UHS Epoxy provides superior protection through its high-build, edge-retentive properties as compared to conventional epoxies.
For use over properly prepared steel and concrete surfaces in industrial environments, such as but not limited to:
- Oil storage tank interiors
- Refined fuel storage tanks
- Fully approved for aviation fuel - EI Standard 1541
-

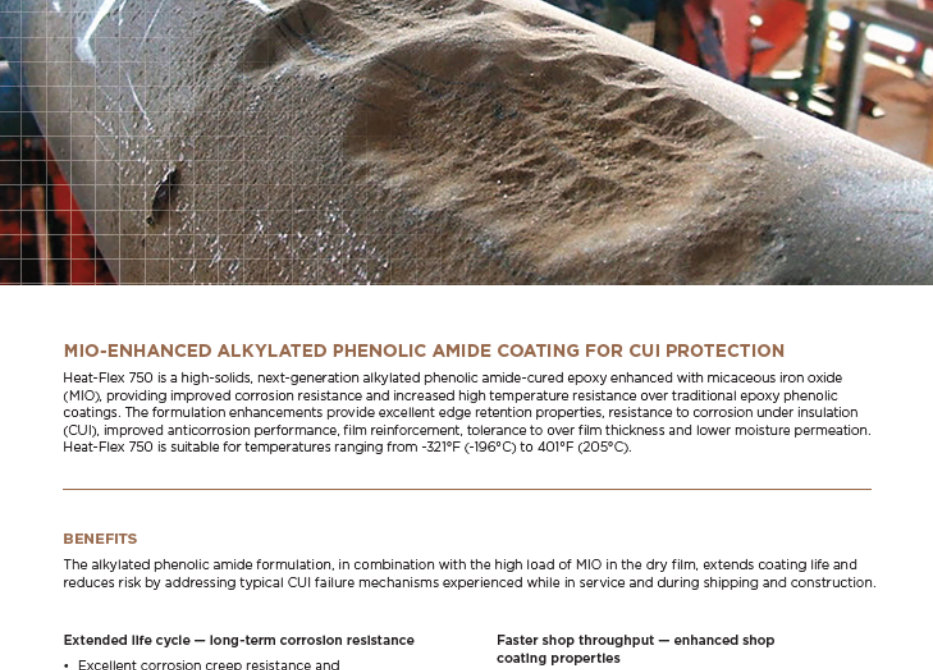

Heat-Flex® 750
Heat-Flex 750 is a two-component micaceous iron oxide (MIO) enhanced alkylated amide epoxy (AAE) coating. This coating consistently outperforms comparable alternatives in terms of heat, corrosion, erosion, and thermal shock properties. A variety of accelerated testing methods have shown that Heat-Flex 750 outperforms traditional epoxy phenolics and other AAE technologies in a CX environment with no adhesion loss, an excellent rating for rust and blistering, as well as excellent heat and crack resistance at high DFTs, and minimal chalking and DFT erosion. The product's high solids and fast dry times make it ideal to increase productivity.
- Exterior insulated tanks
- Piping
Tanks, Terminals & Pipeline
