Two-Coat Systems That Move Steel Faster

Primer Sets the Pace. Inorganic zinc primers are typically silicate based. They are widely associated with premium corrosion protection and remain common in bridge and highway specifications. They also tend to require tighter surface preparation control and longer cure schedules before recoat. In many shop workflows, an inorganic zinc primer may require 18 to 24 hours before touch-up or before the next application step can proceed.

Organic zinc-rich primers are commonly epoxy based. They still provide cathodic protection through high zinc loading, but their cure behavior is different and, in many cases, faster and more predictable for shop production. In documented shop timing comparisons, organic zinc primers have supported recoating in as little as one to three hours (Figure 1).

That swing matters because it moves the longest clock in the workflow. And it repeats. If inspection identifies deficiencies that require primer touch-up, the primer has to cure again before the next step can proceed. A 15- to 23-hour difference once can become a full-day difference when it happens twice.

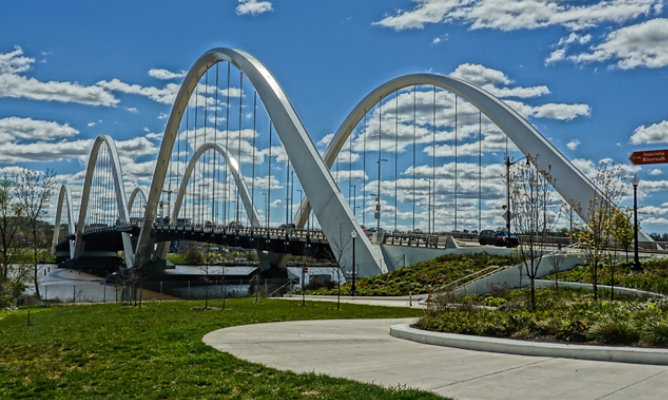

The Frederick Douglass Memorial Bridge project in Washington, D.C. illustrates how these factors compound. Based on AASHTO Product Evaluation & Audit Solutions testing, a two-coat system was selected for the bridge’s structural steel, allowing the fabricator, Veritas Steel, to eliminate the intermediate coat. That removed one-third of coating application labor tied to a three-coat workflow and eliminated two to six hours of waiting time per piece of steel by skipping the intermediate step. Veritas also chose an organic zinc primer, saving up to 23 hours of waiting time before touch-ups or topcoating compared to an inorganic zinc option. With the polysiloxane finish, the bridge was expected to maintain its corrosion protection and its white, glossy appearance for 25 to 30 years. The new bridge opened in September 2021 (Figure 2).

Topcoat Carries the Load. In a two-coat system, the finish must provide durability and weathering resistance, while also contributing meaningful film build and protection in a single application step. That is why the conversation often centers on polysiloxanes and, in some specifications, polyaspartics.

Polysiloxane technology is a common answer because it can combine characteristics typically split between an epoxy intermediate and a polyurethane finish. It is also compatible over both inorganic zinc and organic zinc primers, which provides flexibility for specifications and shop practices. Sher-Loxane® 800, for example, is positioned as an isocyanate-free polysiloxane finish and is promoted for long-term corrosion control and weatherability. (That no-isocyanate characteristic becomes relevant again when field work and multi-trade coordination are part of the schedule.)

Polyaspartic topcoats can also support fast handling times and have been used successfully in two-coat architectures, particularly where rapid cure is the priority. A practical distinction is that polyaspartics are generally tied to organic zinc primers in these systems. They are not typically recommended for use over inorganic zinc primers, which narrows primer flexibility.

Markets at a Glance

Steel does not know if it is headed to a bridge, a stadium or a semiconductor plant. But the environment around it does. The same two-coat architecture can serve multiple structural steel markets, even as each market brings its own stressors – salts, abrasion or contamination control – and its own definition of what performance has to include. In the shop, the benefits are consistent – fewer application steps, less waiting between coats, fewer opportunities for rework and faster release. In the field, the priorities shift.

Stadiums and Venues. Public venues combine high visibility with high contact. Over the course of a year, hundreds of thousands of people may move through a facility and unintentionally bump into and nick exposed steel. High-traffic conditions reward finishes that resist scratches, scuffs and abrasion, especially in areas where touch-up is disruptive or aesthetics are part of the owner’s experience standard. In that context, polysiloxane finishes are often positioned as an all-encompassing structural steel topcoat: durable enough for day-to-day contact while maintaining appearance where exposed steel is part of the architectural intent.

Bridges and Highways. Bridge steel faces obvious corrosive drivers such as deicing salts (Figure 3). Traffic introduces another challenge that is easier to overlook: hydrocarbon deposits from exhaust byproducts, oils and particulate matter. Those deposits can create a sticky layer that attracts dirt and airborne debris (Figure 4). Once that contamination layer forms, it can hold moisture against the film and work against durability over time. Just as in stadium environments, where contact damage drives finish durability, bridge stakeholders have a maintenance reality to manage. Finishes described as having lower surface tension and dense films can be easier to clean, helping crews remove buildup with less effort and potentially extend the window between maintenance cycles.

Advanced Manufacturing Plants. Data centers, semiconductor fabrication facilities and EV battery plants add a different layer of scrutiny. These projects often move on compressed construction schedules, and then operate inside controlled environments where particulates and chemical sensitivity are production concerns. For semiconductor projects in particular, project teams are solving for airborne molecular contamination (AMC) – trace chemical vapors and aerosols that can migrate through the air stream and adhere to surfaces, affecting yield. Owners and engineers may evaluate coatings for resistance to degradation that could generate particulates and for cure behavior tied to outgassing. Practically, that means a finish needs to cure to a tough, stable film on a predictable timeline so construction can keep moving without introducing avoidable contamination concerns inside sensitive spaces.

General Manufacturing and Processing. In many plants, moisture, routine cleaning and repeated contact matter more than UV weathering. Food and beverage facilities, for example, can involve frequent washdowns and persistent wet conditions that elevate the importance of moisture resistance and film integrity. Just as in advanced manufacturing, the goal is not simply to coat steel and move on. It is to prevent the coating from becoming a recurring maintenance problem. Durable finishes that resist moisture intrusion and hold up to routine cleaning can reduce touch-up frequency and simplify maintenance planning.

Water Infrastructure. Water assets introduce a degradation pathway driven by condensation and biology. Where humid air meets cooler water, tanks can sweat. That moisture can hold dirt on the surface and encourage mold and mildew growth (Figure 5), particularly in shaded areas and high-vegetation environments. Over time, the back side of an elevated tank can look very different than the sun-facing side. Polysiloxane finishes are valued for their hydrophobic behavior and low surface tension characteristics, which can help shed environmental contamination and make surfaces easier to wash down once the tank has been recoated (Figure 6). The goal is to keep the surface cleaner and drier so the conditions that encourage biological growth are reduced and maintenance becomes less disruptive.

Shop to Site

Even when a system is shop applied, field realities are unavoidable. Steel is transported, handled, erected and bolted together. Connections are damaged, surfaces pick up dirt and touch-ups are necessary – often when schedules are least forgiving.

This is where coating selection affects more than corrosion control. Systems with practical recoat windows and predictable field cure help crews protect damaged areas and keep progress moving. It also supports multi-trade coordination. Isocyanate-free finishes can reduce the access constraints that sometimes come with urethane-based systems, particularly indoors, where other trades may need to work nearby or where teams are trying to avoid introducing unnecessary contamination into sensitive spaces. Fewer access restrictions means fewer delays.

The maintenance picture matters, too. When a coating system limits moisture intrusion and slows corrosion development, the first major maintenance cycle can be less invasive and less disruptive. If the coating has performed for decades with limited underfilm corrosion, future work is less likely to start with extensive removal and rebuild. Maintenance does not disappear, but upstream performance can change what maintenance looks like downstream.

Closing View

Two-coat systems are showing up more often for a simple reason: they remove a step that slows production without changing the performance target. The shift works when teams treat two coats as a purpose-built system – not a three-coat system with something taken away – and when they focus on where time is actually lost: cure windows, inspection holds and touch-up loops.

Put the pieces together – primer, topcoat and process – and you get what shops are after: fewer steps, faster release and a finish that still holds up over the long haul.

Figure 1. Shorter primer cure windows are where many two-coat schedule gains start – organic zinc primers can cut that waiting time significantly in shop-applied bridge steel.

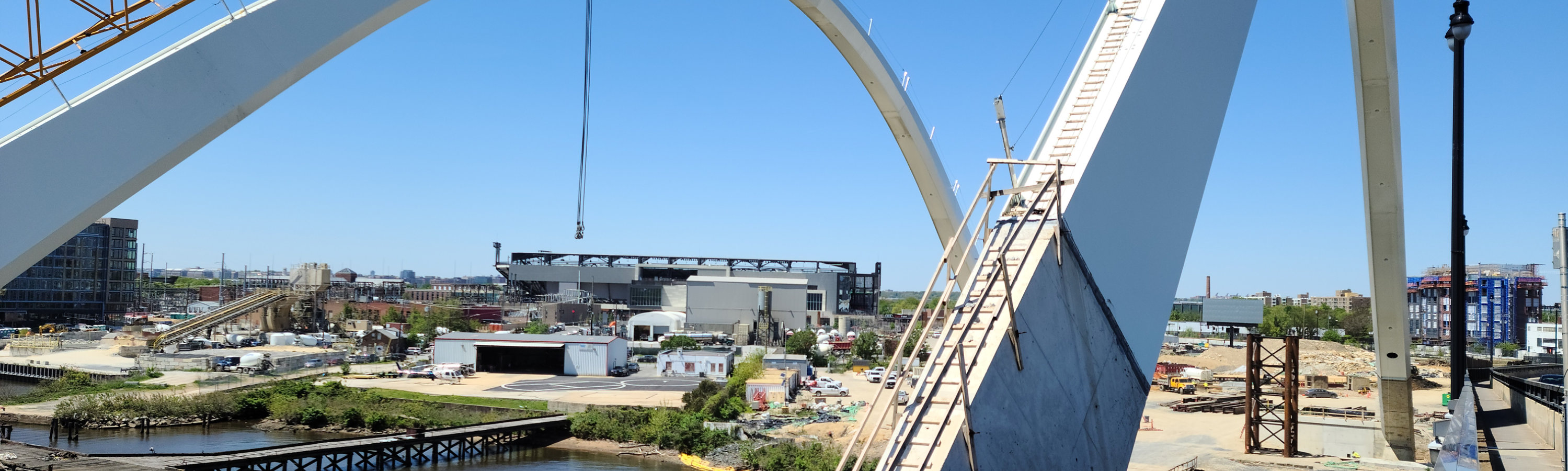

Figure 2. Structural steel for the Frederick Douglass Memorial Bridge in Washington, D.C. was shop coated and finished with a polysiloxane topcoat for long-term color and gloss retention.

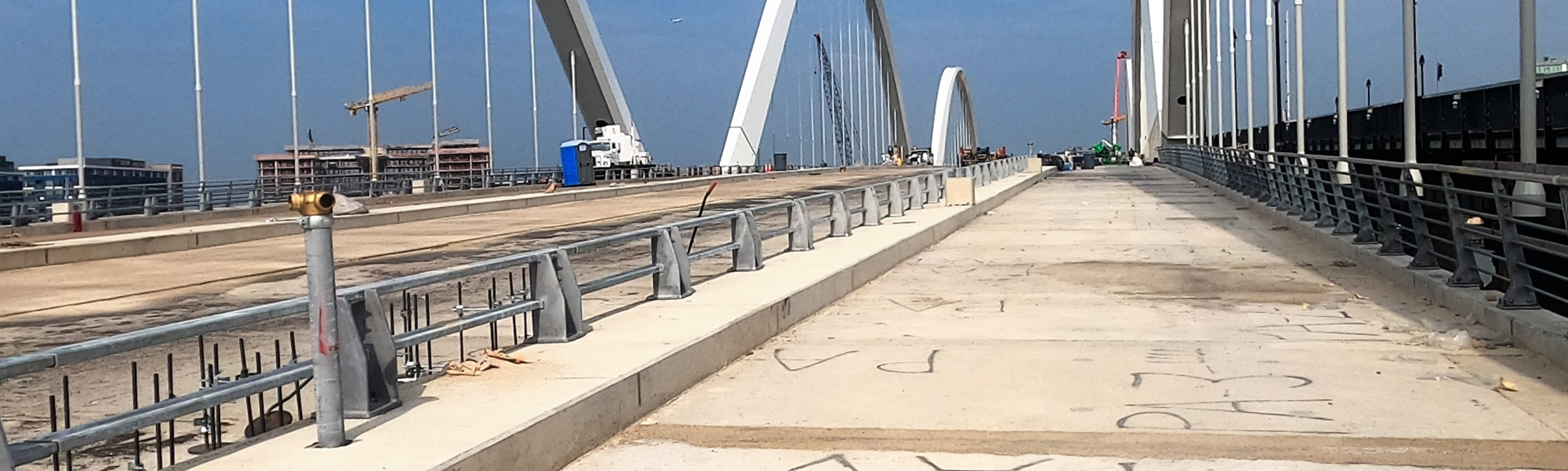

Figure 3. On the Frederick Douglass Memorial Bridge steel, the organic zinc primer’s shorter recoat window supported quicker topcoating and fewer hold points in the two-coat workflow.

Figure 4. In-service bridge conditions can combine deicing salts with traffic-related deposits and moisture cycling — a mix that can drive cleaning demands and influence long-term coating performance.

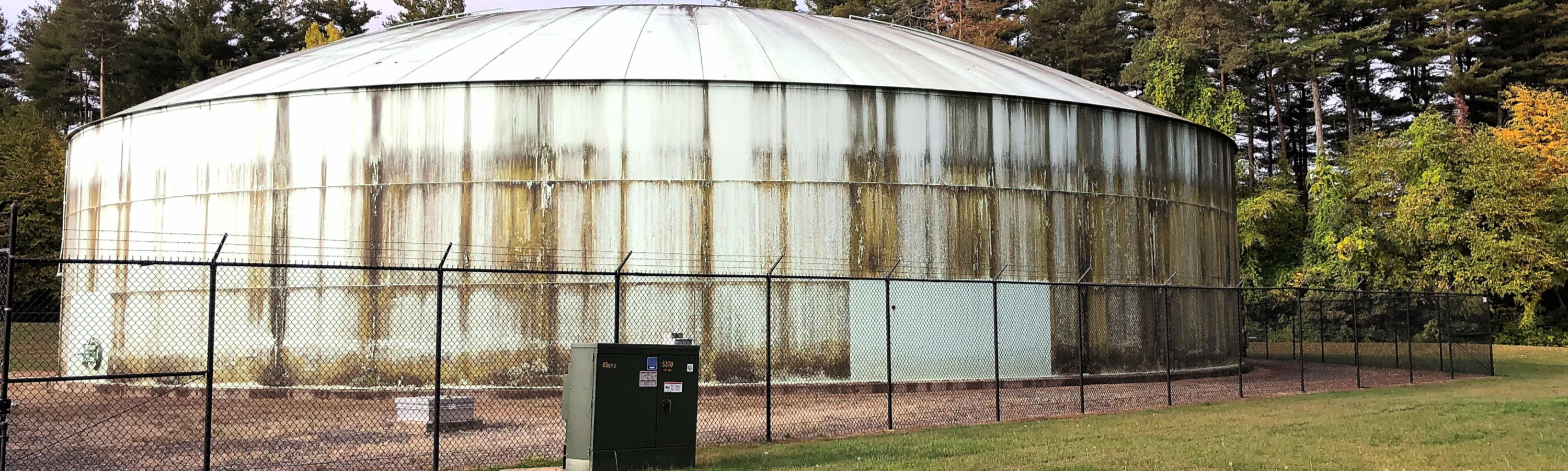

Figure 5. This water storage tank exterior showed widespread surface contamination and mildew buildup prior to maintenance.

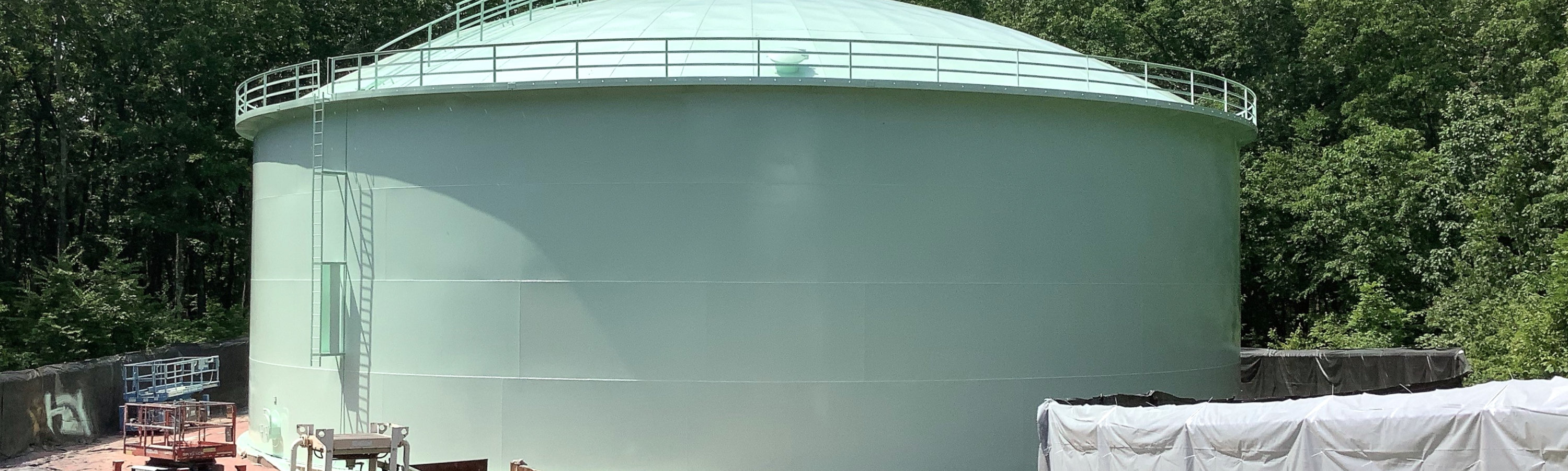

Figure 6. After recoating the tank with a Sher-Loxane® 800 finish, it features a restored appearance that will support long-term cleanability.
